Product Description

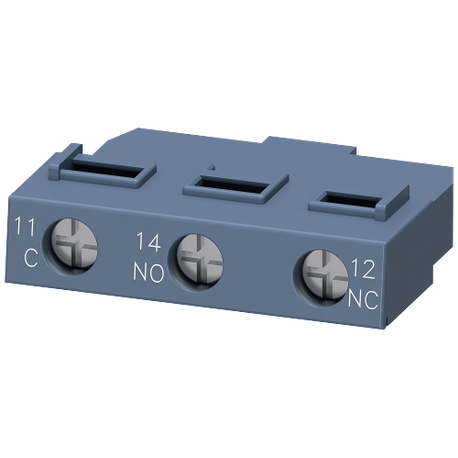

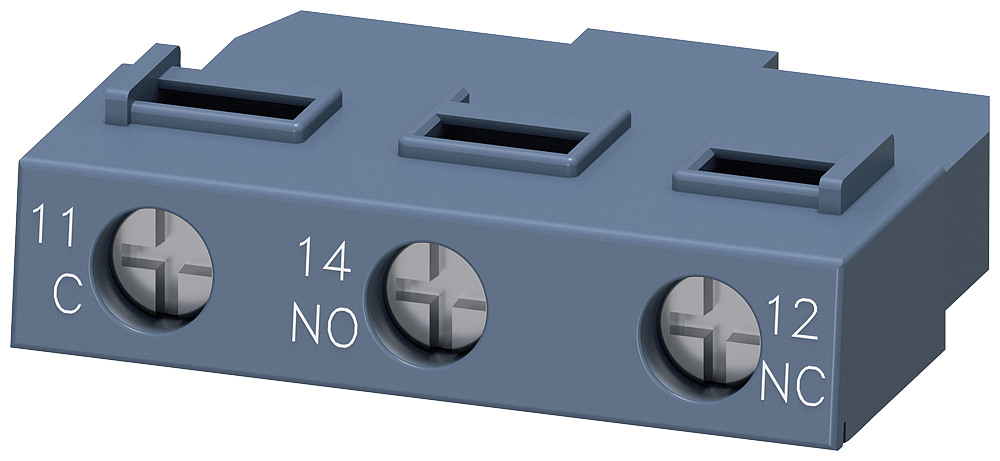

The Siemens 3RV29011D is a transverse auxiliary switch designed for circuit breakers. This product features one normally open contact and is compatible with size S00 and S0 circuit breakers from the 3RV2 series. It simplifies electrical installations with screw terminals for reliable connections.
- Constructed for Size S00 and S0 circuit breakers
- Support for 24 to 690 VAC and 24 to 250 VDC
- Lightweight at 0.010 lb for easy handling
Product Highlights
Reliable and efficient, ideal for various electrical applications in industrial and commercial settings.
Product Information
Standard Information
-
Brand: Siemens
-
Country of Origin: Czech Republic
Technical Specifications
-
Catalog Number: 3RV29011D
-
Voltage Rating: 24 to 690 VAC / 24 to 250 VDC
-
Amperage Rating: 0.1 to 10 A
-
Dimensions: 2.5 inches L x 1.9 inches W x 2.05 inches H
-
Connection Type: Screw
-
Weight: 0.010 lb
-
Contact Configuration: 1 CO
-
Used With: 3RV2 Molded Case Circuit Breaker
