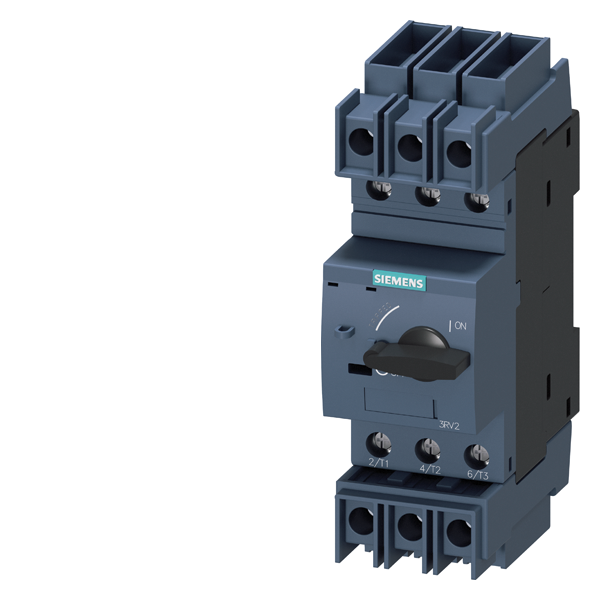

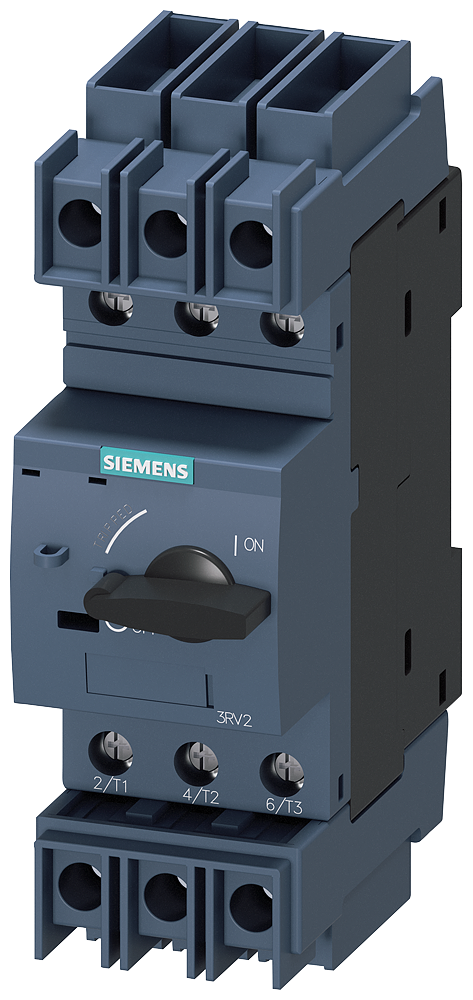

Siemens 3RV27114AD10 Circuit Breaker, 15A, 3-P Motor Protection, 690V, 3RV2 Series

Product Description

The SIEMENS 3RV27114AD10 is a SIRIUS 3RV2 series motor starter protector, a compact current-limiting device optimized for load feeders. It protects and switches three-phase motors and other loads. Suitable for standard motors at ambient temperatures of ≤ 60 °C. It meets the requirements for motor and system protection according to IEC 60947-2 / DIN VDE 0660-101.

• Circuit-breaker for motor protection
• Screw connection/ Spring clamp
• Class 10

Product Highlights

Offers overload, short-circuit, and phase loss sensitivity. Suitable for short-circuit, motor, and system protection, as well as transformer protection and use in IT systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV27114AD10
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Current Rating: 16A
• Manufacturer Part Number: 3RV27114AD10
• Number of Poles: 3
• Primary Type: Circuit Breaker
• Series: 3RV2 Series
• Terminal Type: Screw
• UPC Code: 662643922851
• Voltage Rating - AC: 690 V
• Trip Range: 15/208 A
• Application: For system protection applications
• Actuator Type: Rotary
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, CSA, EAC, UL
• Breaker Type: Thermal
• Actuator: selector switch
• Connection Type: Screw Connection
• Operating Temperature: -20 degrees C
• TC Connection: screw-type terminals
• Type: 3RV2 circuit breaker
• Voltage: 690 Volt
• Sub Brand: SIRIUS
• 12-Digit UPC: 662643922851
• Environmental Conditions: 80 to 50 C
