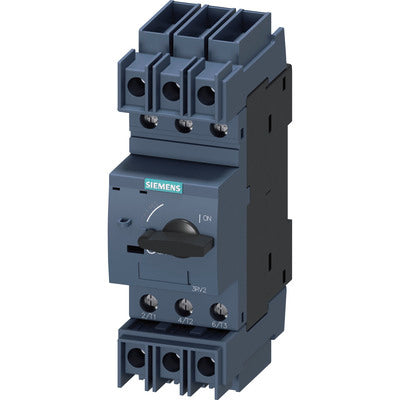

Siemens 3RV27110FD10 Circuit Breaker 0.5A REPLACEMENT 3RV27110FD10

Product Description

The SIEMENS 3RV27110FD10 is a thermal magnetic circuit breaker designed for plant protection. This breaker supports 690 V AC/DC and features a rotary actuator and DIN rail mounting. It is rated for 0.5A with a 6.5A N-release and utilizes a screw connection with standard switching capacity. It is suitable for operation in IT systems.

• Thermal-Magnetic Motor Protection Circuit Breaker (MPCB)
• Rated for 0.5A / 120W
• DIN rail mounting

Product Highlights

The SIEMENS 3RV27110FD10 circuit breaker provides reliable circuit protection with thermal-magnetic tripping and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV27110FD10
• Country of Origin: Germany

Technical Specifications

• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Current Rating (Amps): 500mA
• Manufacturer: Siemens
• Voltage Rating - AC: 690 V
• Series: 3RV2 Series
• Actuator Type: Rotary
• Number of Poles: 3
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, CSA, EAC, UL, VDE
• Breaker Type: Thermal Magnetic
• Current Rating: 0.5 A
• Manufacturer Part Number: 3RV27110FD10
• Type: Thermal Magnetic Breaker
• Application/Feature: Plant Protection
• Poles: 3P
• Amps: 0.5A
• Voltage: 690V AC/DC
• Rating - kA IR: 100
• Manufacturer Series: 3RV2
• Trip Range: 0.5/6.5 A
• Primary brand: Siemens
• Main function: Motor Protection Circuit Breaker (MPCB)
• Sub-range name: 3RV27 series
• Functions: Thermal-Magnetic Motor Protection Circuit Breaker (MPCB) / Manual motor starter protector
• ON/OFF rotary handle with lockout: None
• Rated current: 0.5A (fixed)
• Rated active power (kW): 60W / 0.06kW (230Vac) 120W / 0.12kW (400Vac) 120W / 0.12kW (500Vac) 180W / 0.18kW (690Vac)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Connection type: Screw-clamp connections
• Short circuit breaking rating: 65kA (240Vac; UL489 / CSA rating) 65kA (480Y/277Vac; UL489 / CSA rating) 10kA (600Vac; UL489 / CSA rating)
• Ultimate short circuit current breaking capacity (Icu): 100kA (240Vac) 100kA (400Vac) 100kA (500Vac) 100kA (690Vac)
• Service short circuit current breaking capacity (Ics): 100kA (240Vac) 100kA (400Vac) 100kA (500Vac) 100kA (690Vac)
• Trip unit type: Thermal-Magnetic (adjustable)
• Protection functions: Thermal overload Class 10 Short circuit protection
• Mounting mode: DIN rail mounting
• Operating mode: ON/OFF rotary knob/handle
• Dimensions: Size S00
• Net Height (mm): 144 mm
• Net Width (mm): 45 mm
• Net Depth (mm): 92 mm
• Electrical durability (with load): 100000 operations
• Mechanical durability (at no load): 100000 operations
• Order code / Manufacturer SKU: 3RV2711-0FD10 3RV27110FD10
• Manufacturer product status: Commercialized
• Equivalent to: 3RV27110FD10
• EAN code: 4011209767515
• Compliant with standard(s): IEC 60529 IEC 61140 IEC 60068-2-27 IEC 81346-2 SN 31920 IEC 61508 UL 489 CSA C22.2 No. 5 UL approved
• Location of origin: Germany
• Part #: 3RV2711-0FD10
