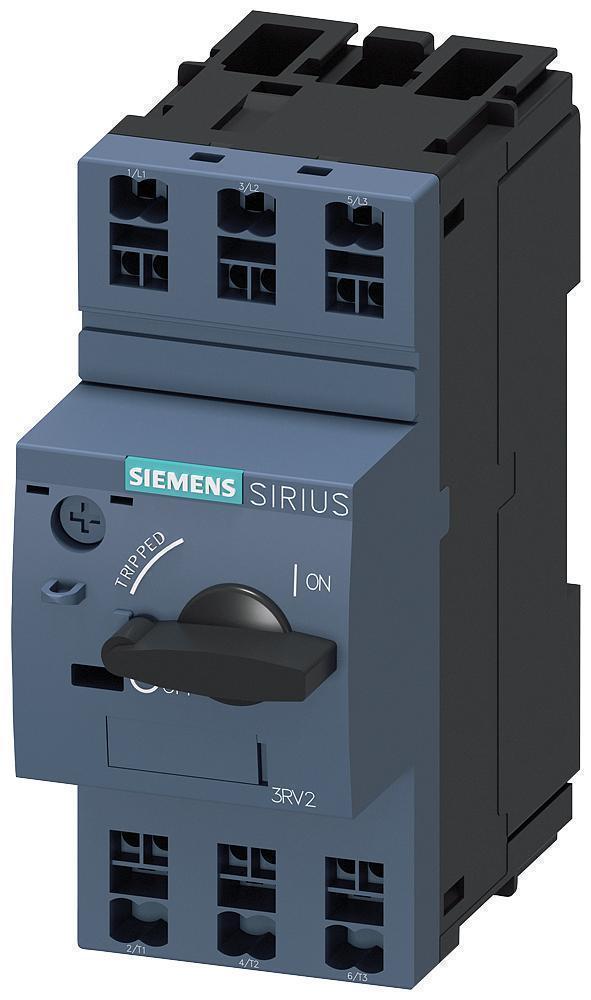

Siemens 3RV24111HA20 Motor Protection Circuit Breaker 5.5 to 8 A

Product Description

The SIEMENS 3RV24111HA20 Motor Protection Circuit Breaker, from the 3RV2 series, operates at 690 V AC and 50 to 60 Hz. It features a magnetic trip with a 163 A trip setting and a spring-loaded latch-lock handle connection. Designed for transformer protection applications, it has an IP20 enclosure and is suitable for DIN rail mounting. The device has a 5.5 to 8 A amperage rating.

• Transformer Protection Applications
• Minimization of Energy Losses Through Optimization of the Bimetal Trip Units
• Reduction of Inherent Power Loss

Product Highlights

This circuit breaker is designed for motor protection and energy efficiency, suitable for industrial automation and facilities maintenance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV24111HA20
• Country of Origin: USA

Technical Specifications

• Brand: Siemens
• Part Number #: 3RV24111HA20
• SKU #: 2287194
• Amperage Rating: 5.5 to 8 A
• Frame: S00
• Wire Size: 20 to 12 AWG
• Connection type: Spring-Loaded Latch-Lock Handle
• UNSPSC: 39121601
• Approval: UL 508, CSA C22.2, CE, CCC, EAC
• Starter Size: S00
• Current Rating: 8 Amp
• Number Of Poles: 3
• Motor FLA: 8 Amp at 480/600 Volt AC
• Adjustment range undelayed short-circuit release: 163 A
• Complete device with protection unit: TRUE
• Degree of protection (IP): IP20
• Device construction: Built-in device fixed built-in technique
• DIN rail (top hat rail) mounting optional: TRUE
• Integrated earth fault protection: FALSE
• Motor drive integrated: FALSE
• Motor drive optional: FALSE
• Number of auxiliary contacts as change-over contact: 0
• Number of auxiliary contacts as normally closed contact: 0
• Number of auxiliary contacts as normally open contact: 0
• Overload release current setting: 5.5 A
• Position of connection for main current circuit: Other
• Rated permanent current Iu: 8.0 A
• Rated short-circuit breaking capacity lcu at 400 V; 50 Hz: 100 kA
• Suitable for DIN rail (top hat rail) mounting: FALSE
• Type of control element: Toggle
• Type of electrical connection of main circuit: Spring clamp connection
