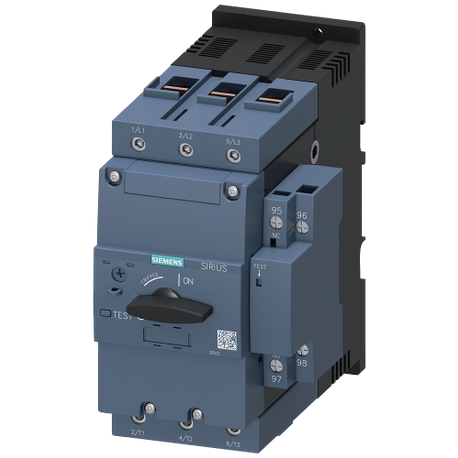

Siemens 3RV21424JA10 Motor Protection Circuit Breaker With Auxiliary Switch, 690 VAC, 63 A, 100 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

SIEMENS
Brand: SIEMENS
SKU: 3RV21424JA10
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Siemens 3RV21424JA10 is a motor protection circuit breaker designed to protect motors against overloads and short circuits. It operates at a voltage of six hundred ninety volts alternating current (VAC) and has a current rating of sixty-three amperes (A). This model features a thermal/magnetic trip mechanism and has a high interrupt rating of one hundred kiloamperes (kA).

  • Rated for up to 690 VAC
  • Three poles for motor application
  • Auxiliary switch included for additional functionality

Product Highlights

This circuit breaker is ideal for motor circuit protection in various industrial applications, ensuring reliable operation and safety.

Product Information

Standard Information

  • Brand: Siemens
  • Manufacturer: Siemens
Technical Specifications
Frame
S3
Trip Range
819 A
Series
3RV2
Connection Type
Screw
Phase
1/3
Interrupt Rating
100 kA
GTIN
00804766705595
Auxiliary Contact Rating
1NO-1NC
Trip Type
Thermal/Magnetic
Temperature Rating
-20 to 60 deg C
Voltage Rating
690 VAC
Number Of Poles
3
Enclosure Type
IP00/IP20
Mounting Type
DIN Rail
Amperage Rating
63 A
Frequency Rating
50/60 Hz
Power Rating
55000 W
Dimensions
165 mm H x 90 mm W x 97 mm D
Minimum Order Qty
1
Standard & Approvals
CCC Certified, CSA Certified, UL Listed, KC Certified, EAC Certified, CE Certified, VDE Approved
