Siemens 3RV21111JA10 Circuit Breaker for Motor Protection S00 Auto Reset 7-10A Screw 3RV2 Series

Product Description

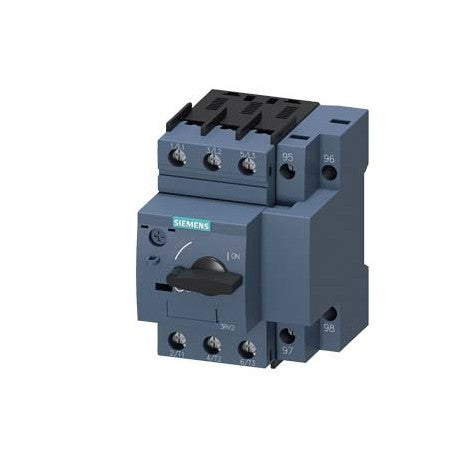

The SIEMENS 3RV21111JA10 circuit breaker is designed for motor protection, size S00, and features auto reset. It is a Class 10 device with overload relay function and an A-release of 7...10A and N-release of 130A. This circuit breaker uses a screw connection and has a standard switching capacity.

• Designed for motor protection
• Features overload relay function with A-release 7-10A and N-release 130A
• Utilizes screw connection

Product Highlights

Circuit breaker provides reliable motor protection with overload relay function and screw connection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV21111JA10
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Current Rating: 10 A
• Manufacturer Part Number: 3RV21111JA10
• Series: 3RV2 Series
• UPC Code: 662643923124
• Applications: MSP with overload relay function
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Operating Cycles: 100000
• Type: 3RV2 circuit breaker
• Voltage: 690 Volt
• Sub Brand: SIRIUS
• Manufacturer: Siemens
• Approval: UL 508, CSA C22.2, CE, CCC, EAC
• Starter Size: S00
• Maximum AC Voltage Rating: 690 Volt AC at 50/60 Hertz
• Motor FLA: 10 Amp
