Siemens 3RV20424YA10 Circuit Breaker 93 A

Product Description

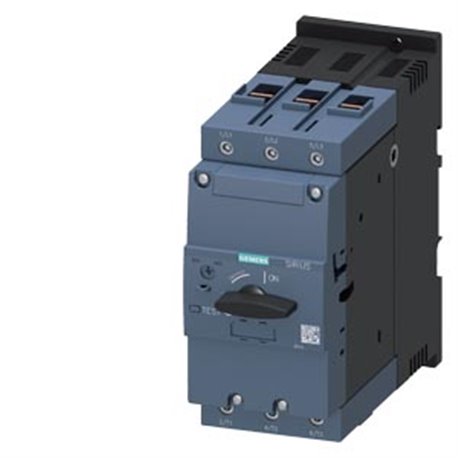

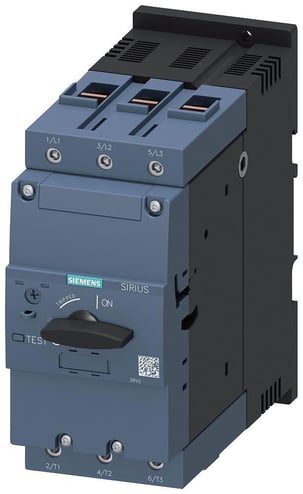

The SIEMENS 3RV20424YA10 is a size S3 circuit breaker designed for motor protection. It features a CLASS 10 A-release of 75...93 A and an N-release of 1300 A. With a screw terminal, this circuit breaker offers increased switching capacity up to 100 kA. It is suitable for motor and system protection.

• For motor and system protection
• CCC Certified, CSA Certified, EAC Compliant, CE Certified, UL Listed, VDE Certified
• Increased switching capacity 100 kA

Product Highlights

The SIEMENS 3RV20424YA10 circuit breaker provides reliable motor protection with high switching capacity and multiple certifications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20424YA10
• Country of Origin: DE

Technical Specifications

• Alternate Mfr Part Number: 3RV2042-4YA10
• Brand: Siemens
• Manufacturer Part Number: 3RV20424YA10
• Actuator Type: Handle
• Amperage Rating: 93 A
• Enclosure Type: IP00/IP20
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 100 kA at 240 VAC, 100 kA at 400 VAC, 10 kA at 500 VAC, 6 kA at 690 VAC
• Number of Poles: 3
• Series: 3RV2
• Temperature Rating: -20 to 60 deg C
• Trip Range: 1300 A
• Trip Type: Thermal Magnetic
• Connection type: Top and Bottom Screw Terminal
• Mounting type: Threaded/Snap-On
• Power Rating: 90 kW at 690 VAC
• Voltage Rating: 690 V AC
• Country of Origin: Germany
• BABA Compliant: No
• Manufacturer: Siemens
• UNSPSC: 39121601
