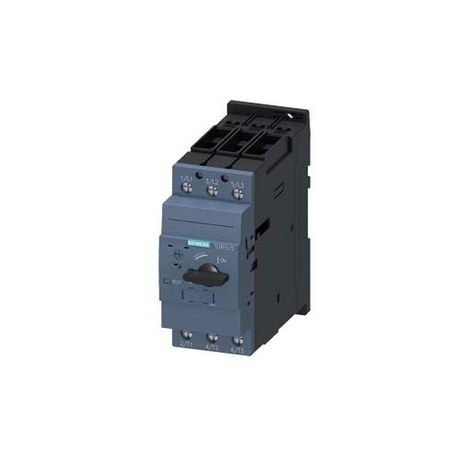

Siemens 3RV20314XA10 Motor Protection Circuit Breaker 690 VAC 49 to 59 A 4 kA Interrupt 3 Poles

Product Description

The Siemens 3RV20314XA10 Motor Protection Circuit Breaker is designed for efficient motor and load protection. This unit operates at a voltage of 690 VAC and is suitable for current ranges from forty-nine to fifty-nine amperes. It features a four kiloamp interrupt rating and comes with three poles for enhanced functionality.

• Compact design for easy installation.
• Magnetic trip for reliable operation.
• Suitable for systems rated up to one hundred amperes.

Product Highlights

This breaker is essential for protecting against overload and short circuits in motor applications, ensuring both safety and reliability.

Product Information

Standard Information

• Manufacturer: Siemens
• Part Number: SIE3RV20314XA10

Technical Specifications

• Wire Size: 18 to 2 AWG
• Phase: 3
• Connection Type: Screw
• Dimensions: 140 mm H x 55 mm W x 149 mm D
• Amperage Rating: 49 to 59 A
• Trip Range: 845 A
• Number Of Poles: 3
• Interrupt Rating: 4 kA
• Frequency Rating: 50 to 60 Hz
• Mounting Type: DIN Rail
• Trip Type: Magnetic
• Power Rating: 55 kW
• Voltage Rating: 690 VAC
• Enclosure Type: IP20
• Temperature Rating: -20 to 60 deg C
• Standard & Approvals: CSA Certified, CE Certified, IEC Certified, UL Listed
