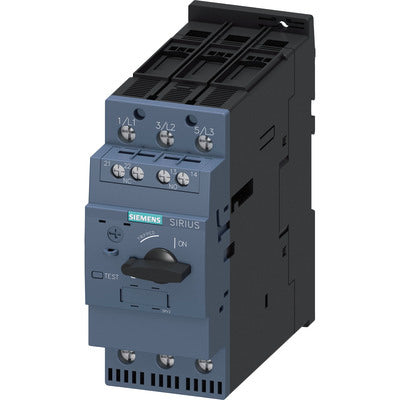

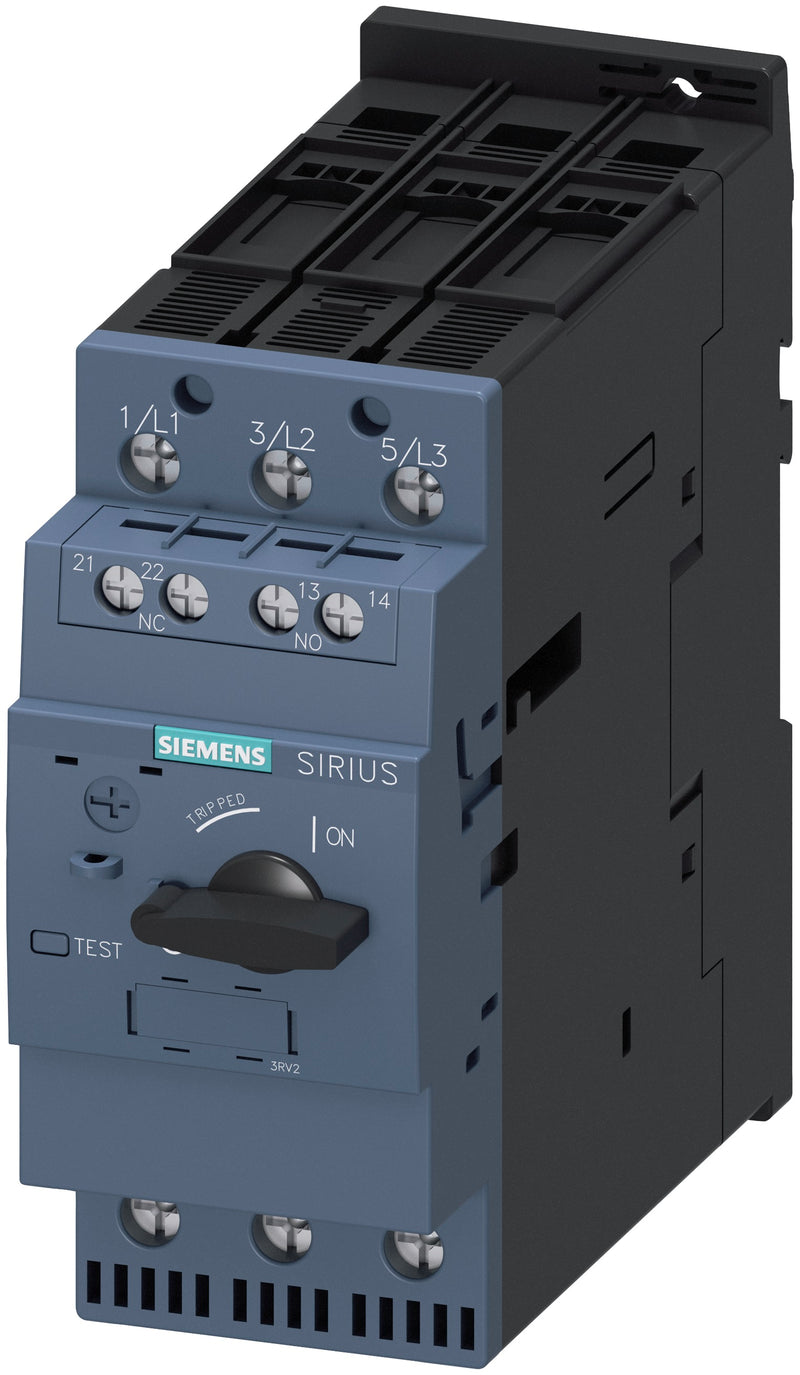

Siemens 3RV20314WA15 Circuit Breaker for Motors S2 Class 10 42-52A Screw 1NO/1NC 3RV2 Series

Product Description

The SIEMENS 3RV20314WA15 is a circuit breaker for motor protection, size S2, class 10 with A-release 42...52A and N-release 741A. It features a screw terminal and standard breaking capacity with a transverse auxiliary switch 1NO+1NC. Suitable for operation in IT systems, this device minimizes energy losses and reduces inherent power loss, leading to less heating of the control cabinet.

• Minimizes energy losses through optimization of the bimetal trip units
• Reduces inherent power loss and heating of the control cabinet
• Features a screw terminal and standard breaking capacity with a transverse auxiliary switch 1NO+1NC

Product Highlights

The SIEMENS 3RV20314WA15 circuit breaker provides reliable motor protection with efficient energy use and versatile application.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20314WA15
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Current Rating: 52 A
• Manufacturer Part Number: 3RV20314WA15
• Series: 3RV2 Series
• UPC Code: 887621920128
• Trip Range: 42 to 52/741 A
• Wire Size: 18 to 2 AWG, 18 to 1 AWG
• Frequency: 50/60 Hz
• Interrupt: 4 kA
• Frame: S2
• Poles: 3 Pole
• Phase: 3 ph
• Connection: Screw Connection
• Auxiliary: 1NO-1NC Auxiliary
• Enclosure: IP00/IP20 Enclosure
• Mounting: DIN Rail/Snap-On/Threaded Mounting
• Temperature: -20 to 60 deg C
• Voltage Rating (AC): 690 V
• Environmental Classification: RoHS Compliant
• Main function: Motor Protection Circuit Breaker (MPCB)
• Product series / family name: SIRIUS
• Sub-range name: 3RV20 series
• Functions: Thermal-Magnetic Motor Protection Circuit Breaker (MPCB) / Manual motor starter protector
• Rated current: 42A-52A (adjustable)
• Rated active power (kW): 15kW (230Vac) 22kW (400Vac) 30kW (500Vac) 45kW (690Vac)
• Rated power (HP): 5HP (115Vac; single-phase) 10HP (240Vac; single-phase) 15HP (200Vac; 3-phase) 20HP (230Vac; 3-phase) 40HP (460Vac; 3-phase) 50HP (575Vac; 3-phase)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Short circuit breaking rating: 65kA (240Vac; UL489 / CSA rating) 65kA (480Y/277Vac; UL489 / CSA rating) 22kA (600Vac; UL489 / CSA rating)
• Ultimate short circuit current breaking capacity (Icu): 100kA (240Vac) 65kA (400Vac) 50kA (440Vac) 10kA (500Vac) 4kA (690Vac)
• Service short circuit current breaking capacity (Ics): 100kA (240Vac) 30kA (400Vac) 15kA (440Vac) 5kA (500Vac) 2kA (690Vac)
• Trip unit type: Thermal-Magnetic (adjustable)
• Protection functions: Thermal overload Class 10 Short circuit protection 3-phase overload with phase loss sensitivity
• Mounting mode: DIN rail mounting
• Operating mode: ON/OFF rotary knob/handle
• Contacts type: 1NO+1NC aux. cont.
• Electrical durability (with load): 50000 operations
• Mechanical durability (at no load): 50000 operations
• Order code / Manufacturer SKU: 3RV2031-4WA15 3RV20314WA15
• Manufacturer product status: Commercialized
• Equivalent to: 3RV20314WA15
• EAN code: 4047621001890
• Compliant with standard(s): IEC 60947-1 EN 60947-1 IEC 60947-2 EN 60947-2 IEC 60947-4-1 EN 60947-4-1 UL 508 UL 60947-4-1 CSA C22.2 No.14 CSA C22.2 No. 60947-4-1 UL 489 CSA C22.2 No. 5 IEC 60068-2-27 IEC 60529 EN 50274 ATEX IEC 81346-2 SN 31920 IEC 61508 UL approved
• Location of origin: Germany
• Full Load Amp Maximum: 2.5
• Aux Contacts: 1 NO+1 NC
