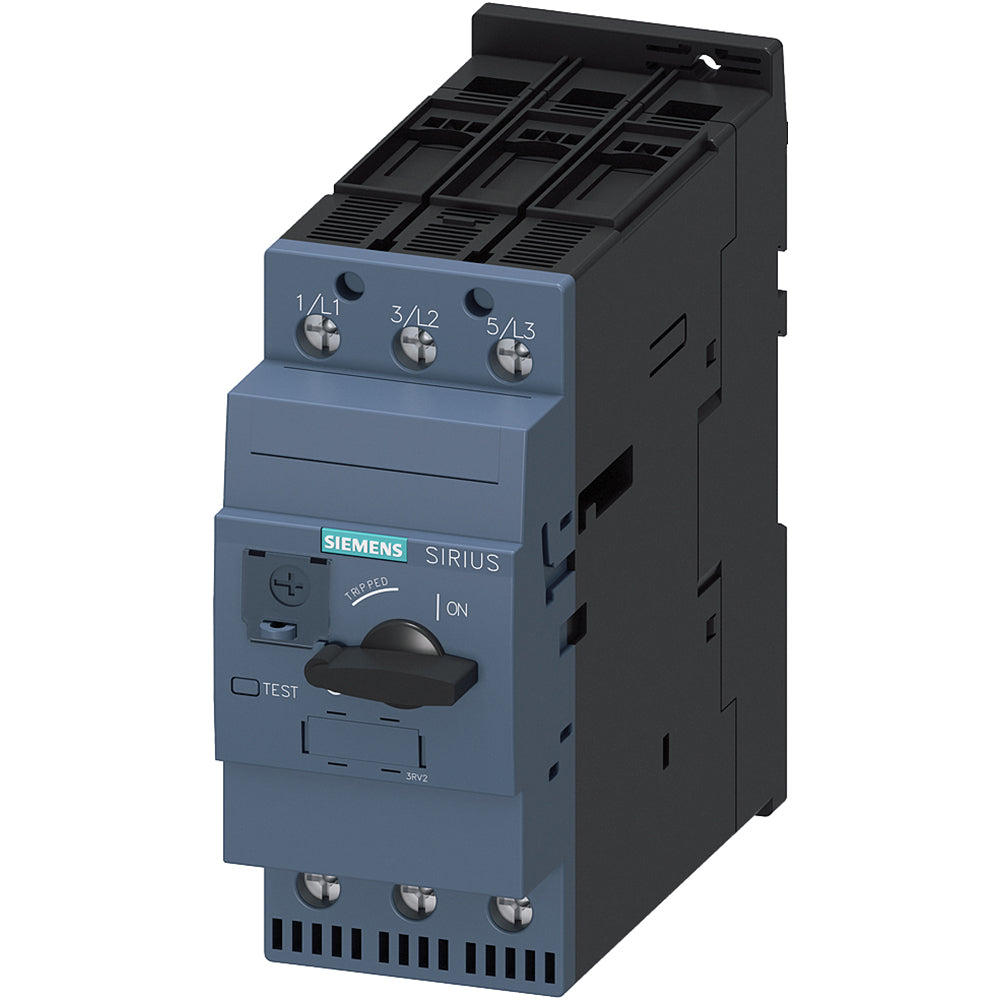

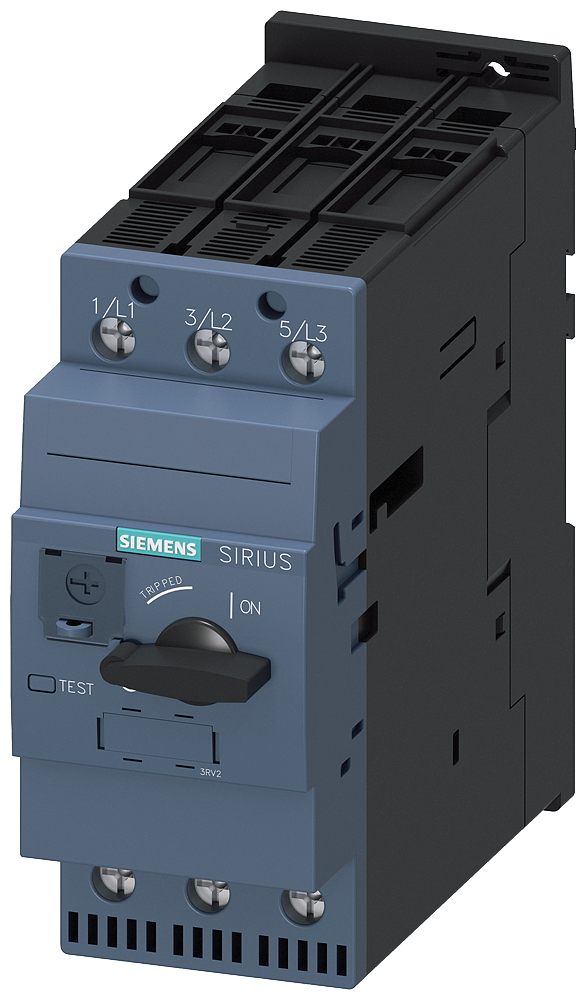

Siemens 3RV20314KA10 MSP S2 Class 10 37 kW (S2)

Product Description

Siemens 3RV20314KA10 is a three-pole thermal-magnetic motor protection circuit breaker sized S2 with an adjustable A-release range of 62 to 73 A. It provides manual motor protection and overload tripping with Class 10 characteristics and a nominal current rating of 73 A. The device is rated to 690 V AC, mounts on a 35 mm DIN rail or by screw, and uses screw connection terminals for motor feeder protection.

• Thermal-magnetic 3-pole motor protection with Class 10 tripping and adjustable overload 62�73 A
• Rated for 690 V AC (50/60 Hz), nominal 73 A, power rating 37 kW, short-circuit breaking capacity 65 kA
• Screw connection terminals; wire capacity (2) 1�35 mm2 or (1) 1�50 mm2; mounts on 35 mm DIN rail or screw/snap-on; IP20; -20 to 60 C

Product Highlights

Manual thermal-magnetic motor protection, 3 poles, 62�73 A adjustable, 690 V AC, DIN-rail mount

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20314KA10
• Country of Origin: Germany
