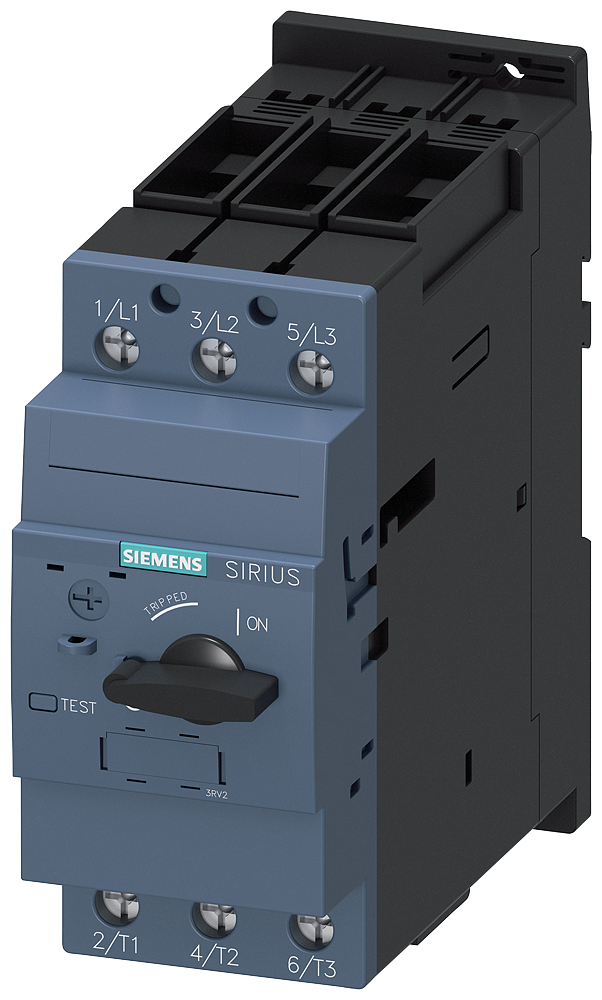

Siemens 3RV20314DA10 Motor Protection Circuit Breaker 690 VAC 20 to 25 A 5 kA Interrupt 3 Poles Magnetic Trip

Product Description

The Siemens 3RV20314DA10 is a motor protection circuit breaker designed for voltage ratings up to six hundred ninety VAC and designed to protect motors in the range of twenty to twenty-five amps. This device features a class ten trip mechanism for effective overload protection and is optimized for use in three-phase motor applications.

• Rated for up to 690 VAC
• Current limiting design
• Suitable for three-phase motors up to 55 kW

Product Highlights

This circuit breaker is crucial for safe and reliable motor operation, ensuring the protection of electrical equipment from overload situations. It is constructed with high-quality materials, making it ideal for industrial environments.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV20314DA10

Technical Specifications

• Voltage Rating: 690 VAC
• Amperage Rating: 20 to 25 A
• Number of Poles: 3
• Trip Type: Magnetic
• Interrupt Rating: 5 kA
• Connection Type: Screw
• Dimensions: 140 mm H x 55 mm W x 149 mm D
• Weight: 2.305 lb
