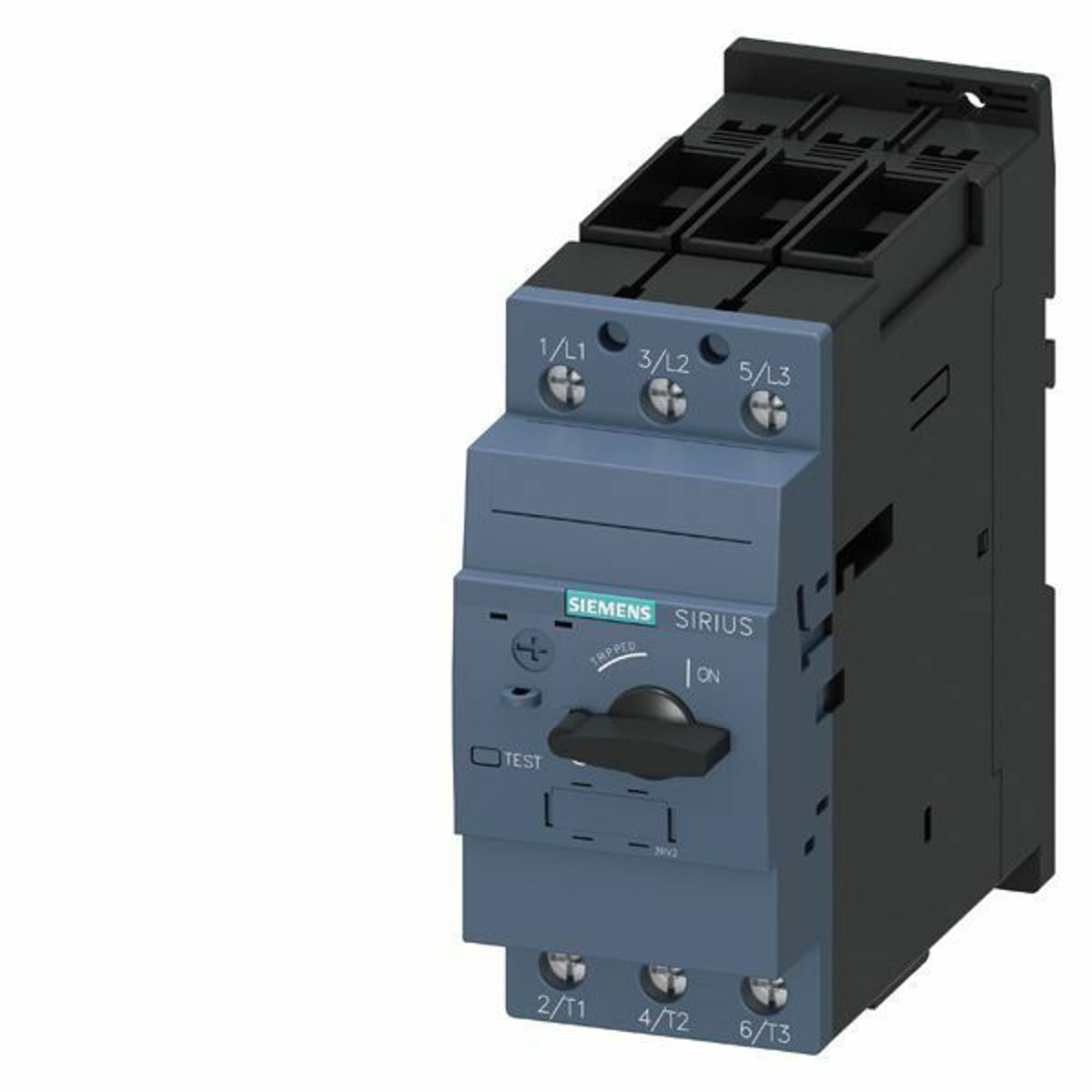

Siemens 3RV2031-4VA10 Motor Protection Circuit Breaker 690 VAC 35 to 45 A Magnetic Trip

Product Description

The Siemens 3RV2031-4VA10 Motor Protection Circuit Breaker is designed for protecting and switching three-phase motors. It features a current rating of 35 to 45 amperes and operates at up to 690 volts AC. This motor starter protector is engineered for industrial applications where reliable motor control is crucial.

• Overload and short-circuit protection
• Easy installation
• DIN Rail Mounting

Product Highlights

This motor protection circuit breaker offers efficient motor control and extends the lifespan of your equipment. It is suitable for use in fans, pumps, conveyors, and other machinery. The device complies with CSA, CE, IEC, and UL standards, ensuring reliable operation.

Product Information

Standard Information

• Product Type: Manual Motor Starter
• Manufacturer: Siemens
• Brand: Siemens

Technical Specifications

• Amperage Rating: 35 to 45 A
• Voltage Rating: 690 VAC
• Number of Poles: 3
• Mounting Type: DIN Rail
• Dimensions: 140 mm H x 55 mm W x 149 mm D
• Trip Type: Magnetic
• Standards & Approvals: CSA Certified, CE Certified, IEC Certified, UL Listed
• Phase: 3
• Frame: S2
• Temperature Rating: -20 to 60 deg C
• UPC: 887621920081
• GTIN: 00887621920081
• Country of Origin: Germany
