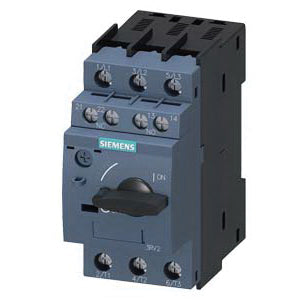

Siemens 3RV20214FA15 Motor Protection Circuit Breaker 40 A

Product Description

The SIEMENS 3RV20214FA15 is a motor protection circuit breaker designed for motor circuit protection with a 40 A rating and 690 VAC voltage capacity. It features a thermomagnetic trip unit with a trip range of 34 to 40 A and a 3 kA interrupt rating. It is built on the S0 frame and mounts easily on DIN rails with screw terminals.

• Minimizes energy losses through optimized bimetal trip units.
• Reduces inherent power loss and heating of the control cabinet.
• Features 34 to 40 A thermal overload release, 480 A instantaneous overcurrent release.

Product Highlights

This circuit breaker is suitable for operation in IT systems and has an IP20 enclosure. It supports 3 poles and includes auxiliary contacts rated 1NO-1NC.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214FA15
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Part Number #: 3RV20214FA15
• Amperage Rating: 34 to 40
• UNSPSC: 39121601
• Current Rating: 40 A
• Manufacturer Part Number: 3RV20214FA15
• Series: 3RV2 Series
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Part Status: Active
• Mounting Type: DIN Rail
• Breaker Type: Thermal Magnetic
• Current Rating (Amps): 40A
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Number of Poles: 3
• Illumination: None
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• Voltage Rating: 690 VAC
• Interrupt Rating: 3 kA
• Frame/Series: S0
• Trip Unit: Thermomagnetic
• Auxiliary Contacts: 1NO-1NC
• Enclosure Type: IP20
• Frequency: 50/60 Hz
• Connection Type: Screw Terminals
• Power Rating: 39 kW
