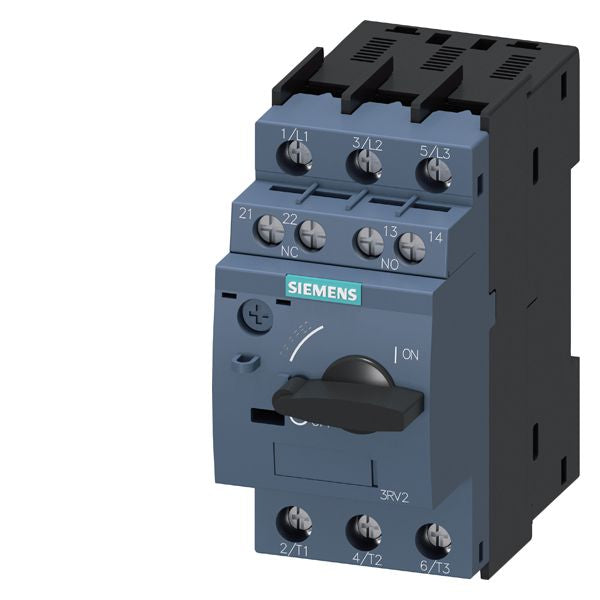

Siemens 3RV20214EA15 Circuit Breaker for Motors 27-32A

Product Description

The Siemens 3RV20214EA15 circuit breaker is for motor protection, optimized for load feeders. It is used for switching and protecting three phase motors of up to 18.5 kW at 400 VAC and for other loads with rated currents of up to 40 A. It isolates faulty load feeders from the power supply within milliseconds.

• Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
• Standard switch capacity
• Protects motors, starters, transformers, and UL 489 applications

Product Highlights

The Siemens 3RV20214EA15 circuit breaker protects equipment during a short circuit and features a lockable operating mechanism for manual closing/opening.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214EA15
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214EA15
• Series: 3RV2 Series
• Unit of Measure: EA
• UPC Code: 662643924497
• Frame: 3RV2/S0
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 4 kA
• Mounting Type: DIN Rail
• Number Of Poles: 3
• Phase: 3
• Power Rating: 30 kW
• Temperature Rating: -20 to 60 deg C
• Trip Type: Thermal/Magnetic
• Voltage Rating: 690 VAC
• Wire Size: 16 to 12 AWG, 14 to 8 AWG
• Application: For manual motor controller and system protection
• Standard & Approvals: CE Certified, CCC Certified, CSA Certified, UL Listed
• Dimensions: 97 mm H x 45 mm W x 96 mm D
• Auxiliary Contact Rating: 1NO-1NC
• Connection Type: Screw
• Enclosure Type: IP20
• Amperage Rating: 27 to 32 A
• Operating Temperature: 60 to -20 °C
