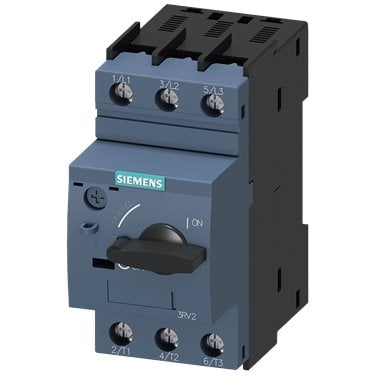

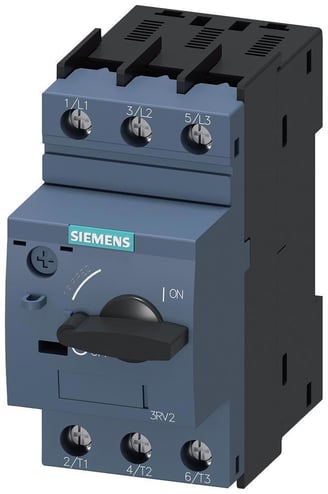

Siemens 3RV20214CA100BA0 Special Type Circuit-Breaker 22A

Product Description

The SIEMENS 3RV20214CA100BA0 is a special type circuit breaker size S0 designed for motor protection. It features a CLASS 10 A-release of 16...22 A and N-release of 286 A with screw terminals and standard switching capacity. Suitable for use in ambient temperatures as low as -50

• Motor protection
• Thermal Magnetic Trip
• Standard switching capacity

Product Highlights

The SIEMENS 3RV20214CA100BA0 is a special type circuit breaker designed for motor protection with thermal magnetic trip and standard switching capacity.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214CA100BA0
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214CA100BA0
• GTIN: 00804766536090
• UNSPSC: 39121601
• Country of Origin: Germany
• Amperage Rating: 16 to 22 A
• Connection Type: Screw
• Enclosure Type: IP20
• Frame: S0
• Frequency Rating: 50 to 60 Hz
• Interrupt Rating: 2 kA
• Mounting Type: DIN Rail
• Number of Poles: 3
• Power Rating: 18500 W
• Series: 3RV2
• Temperature Rating: -20 to 60 deg C
• Type: Motor Protection Special
• BABA Compliant: No
• Trip Type: Thermal Magnetic
• Voltage Rating: 690 V AC
• Category: Circuit Protection
• Current Rating (Amps): 22A
• Manufacturer: Siemens
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Packaging: Box
• Illumination: None
• Approval Agency: CE, EAC, VDE
• Breaker Type: Thermal Magnetic
