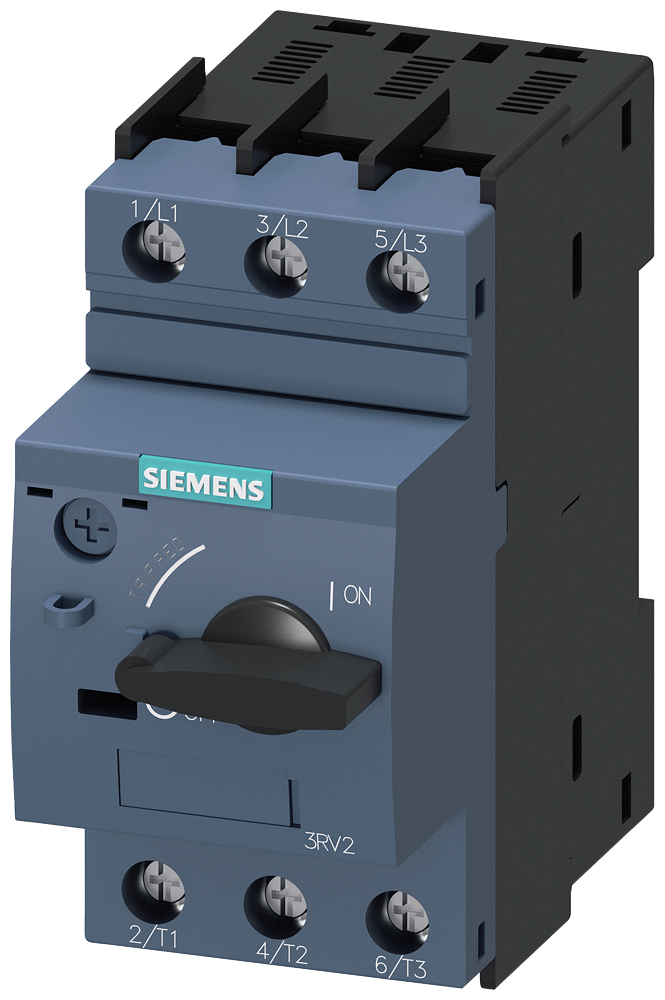

Siemens 3RV20214CA10 3-Pole 22 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector

Product Description

The Siemens 3RV20214CA10 is a 3-pole, 22-amp, 690 VAC, 3-phase thermal magnetic motor starter protector. Designed for motor protection, this device ensures reliable shutdown in short-circuit events and protects against overloads. It is optimized for use with load feeders and can switch direct current.

• Reliable motor protection
• Designed for use in hazardous areas
• Comprehensive range of accessories

Product Highlights

Used for reliable shutdown in case of short circuits and for protecting systems and loads against overloads. Offers safe network isolation and optimized for use in various environments with low heat loss.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV20214CA10

Technical Specifications

• Voltage: 690 VAC
• Amperage: 17-22 Amp
• Number of Poles: 3
• Type: 3RV2 circuit breaker
• Sub Brand: SIRIUS
• Connection Type: Screw-type terminals
• Depth: 97 mm
• Width: 2 inches
• Height: 4 inches
• Weight: 0.73 lb
• Operating Temperature: 60 to 20 degrees C
• Environmental Conditions: 80 to 50 C
• Application: Used as Manual Motor Controller and in Group Installation
• Standards: CE, UL, CSA
• Country of Origin: Germany
