Siemens 3RV20214AA15 MSP S0 11-16A SCRE

Product Description

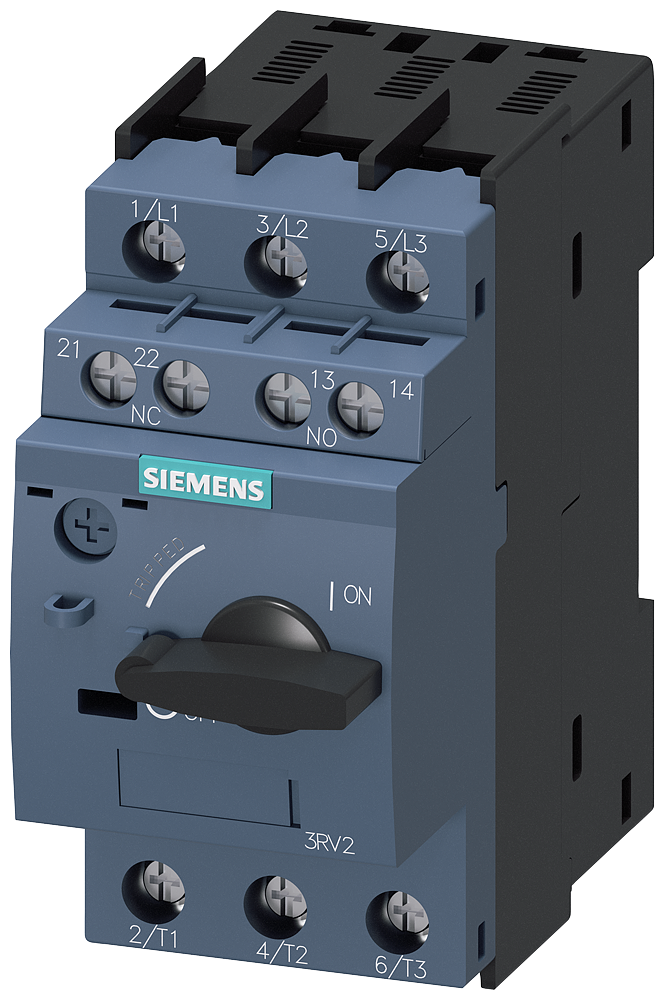

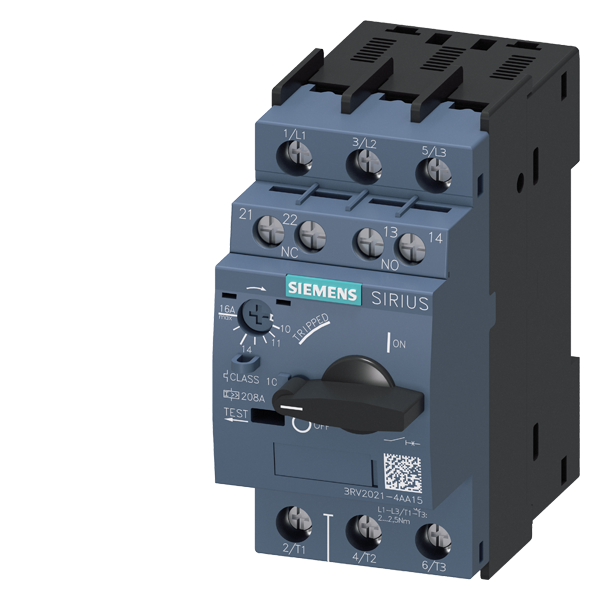

The SIEMENS 3RV20214AA15 is a circuit breaker for motor protection. Suitable for side by side mounting up to 60 deg C. Indicates tripped position. Can be connected easily and without any wiring to the SIRIUS contactors and soft starters through a link module. The four sizes cover a current range up to 100 A.

• S00 and S0 size
• 20/55/100 kA short circuit breaking capacity Icu at 400 VAC
• Thermal/Magnetic Trip

Product Highlights

The SIEMENS 3RV20214AA15 circuit breaker provides motor and system protection with a thermal/magnetic trip, and is suitable for side by side mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20214AA15
• Country of Origin: Germany

Technical Specifications

• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Brand: SIEMENS
• Product UPC: 66264392428
• Manufacturer Part Number: 3RV20214AA15
• Series: 3RV2 Series
• Frame: 3RV20
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 4 kA
• Mounting Type: Snap-On/DIN Rail
• Amperage Rating: 11 to 16 A
• Connection: Screw
• Enclosure Type: IP20
• Power Rating: 11000 W
• Temperature Rating: -20 to 60 deg C
• Trip Type: Thermal/Magnetic
• Voltage Rating: 690 VAC
• Application: For motor/system protection
• Standard & Approvals: CE Certified, CSA Certified, CCC Certified, EAC Approved, UL Listed
