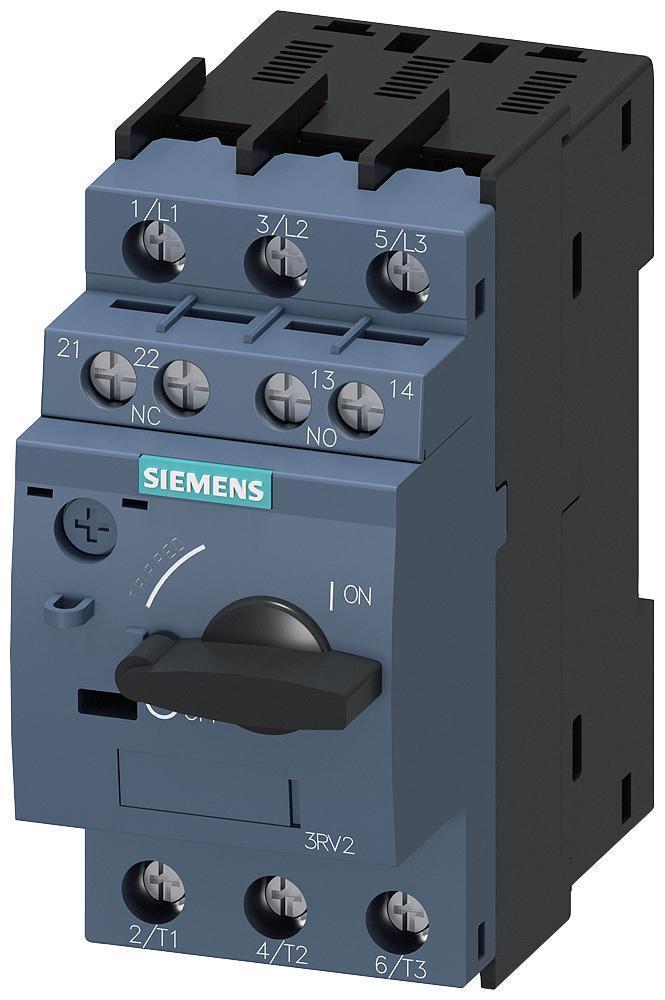

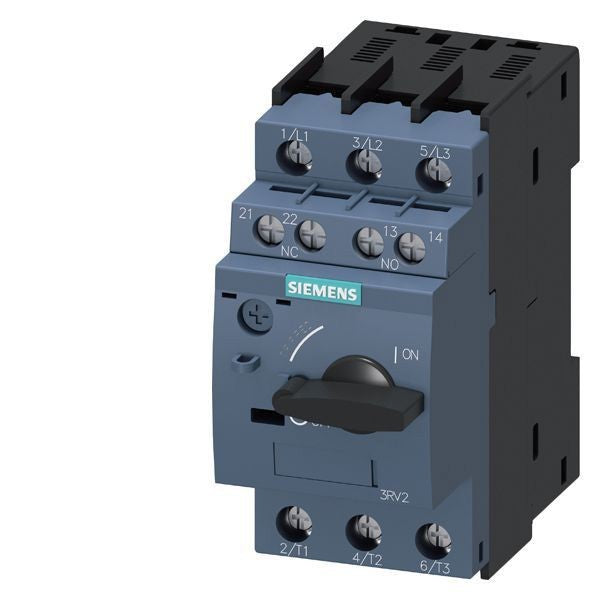

Siemens 3RV20211KA15 Circuit Breaker for Motors S0 9-12.5A w/Aux 1NO/1NC 3RV2 Series

Product Description

The SIEMENS 3RV20211KA15 is a circuit breaker for motor protection, optimized for load feeders. It is used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A. The circuit breaker features a Class 10 trip and a transverse auxiliary switch 1NO+1NC.

• Class 10 trip
• Suitable for motor and system protection applications
• Current limiting motor starter protectors/circuit breakers

Product Highlights

The SIEMENS 3RV20211KA15 circuit breaker provides reliable motor protection with its compact design and auxiliary switch.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211KA15
• Country of Origin: DE

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211KA15
• Series: 3RV2 Series
• Frame: S0
• Frequency Rating: 50 to 60 Hz
• Interrupt Rating: 4 kA
• Mounting Type: DIN Rail
• Number Of Poles: 3
• Amperage Rating: 9 to 12.5 A
• Auxiliary Contact Rating: 1NO-1NC
• Catalog ID: SIE3RV20211KA15
• Connection Type: Screw
• Enclosure Type: IP20
• Phase: 3
• Power Rating: 7.5 kW
• Temperature Rating: -20 to 60 deg C
• Trip Range: 163 A
• Trip Type: Magnetic
• Voltage Rating: 690 VAC
• Wire Size: 16 to 12 AWG
• Application: Motor and System Protection Applications
• Standard & Approvals: CSA Certified, CE Certified, IEC Certified, UL Listed
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Current Rating (Amps): 12.5A
• Manufacturer: Siemens
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Packaging: Box
• Part Status: Active
• Illumination: None
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• Breaker Type: Thermal Magnetic
• Number of Poles: 3 Pole
• UNSPSC: 39121601
• Country of origin: DE
• Connection type: Screw Connection
