Siemens 3RV20211HA15 Circuit Breaker for Motors S0 5.5-8A Screw w/Aux 1NO/1NC 3RV2 Series

Product Description

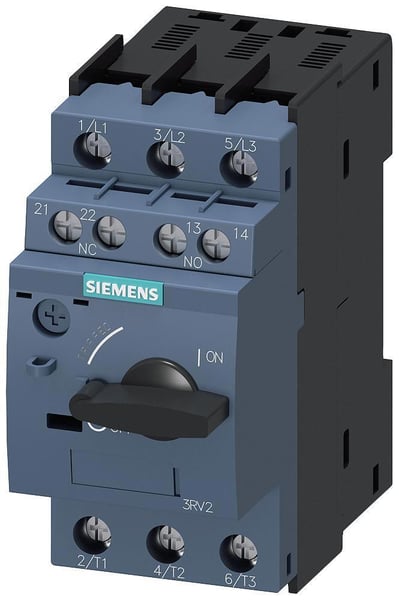

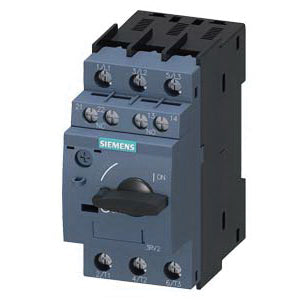

The SIEMENS 3RV20211HA15 is a circuit breaker for motor protection, class 10, with an A-rel of 5.5...8A and N-rel of 104A. It features a screw connection and standard switching capacity with a transverse auxiliary switch 1NO+1NC. It is optimized for load feeders and used for switching and protecting three-phase motors.

• Minimizes energy losses through optimization of the bimetal trip units.
• Reduces inherent power loss and heating of the control cabinet.
• Suitable for operation in IT systems (IT networks).

Product Highlights

The SIEMENS 3RV20211HA15 circuit breaker provides reliable motor protection with efficient energy management and versatile application in various systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211HA15
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Current Rating: 8 A
• Manufacturer Part Number: 3RV20211HA15
• Series: 3RV2 Series
• UPC Code: 887621883621
• Trip Range: 5.5 to 8/104 A
• UNSPSC: 39121601
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Number of Poles: 3
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• Breaker Type: Thermal Magnetic
• Amperage Rating: 5.5 to 8 A
• Frame: S0
• Interrupt Rating: 4 kA
• Trip Type: Magnetic
• Auxiliary Contact Rating: 1NO-1NC
• Voltage Rating: 690 VAC
• Phase: 3
• Enclosure Type: IP20
• Power Rating: 5.5 kW
• Frequency Rating: 50 to 60 Hz
• Connection Type: Screw
• Temperature Rating: -20 to 60 deg C
• Wire Size: 16 to 12 AWG
• MPN: 3RV2021-1HA15
• Country of Origin: Germany
• Starter Size: S0
• Maximum AC Voltage Rating: 690 Volt AC at 50/60 Hertz
• Motor FLA: 8 Amp
