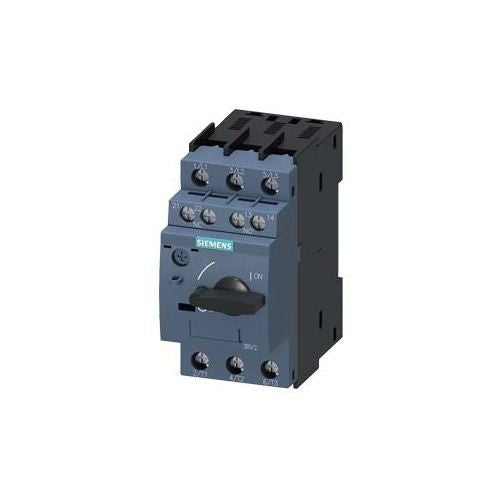

Siemens 3RV20211FA15 Circuit Breaker for Motors S0 3.5-5A Screw w/Aux 1NO/1NC 3RV2 Series

Product Description

The SIEMENS 3RV20211FA15 is a circuit breaker for motor protection, optimized for load feeders. It is used for switching and protecting three-phase motors of up to 4 kW at 400 VAC and for other loads with rated currents of 3.5 to 5 A. The circuit breaker features a screw connection and a transverse auxiliary switch 1NO+1NC.

• Class 10 trip
• Magnetic trip
• Suitable for motor and system protection applications

Product Highlights

The SIEMENS 3RV20211FA15 offers reliable motor protection with its compact design and current limiting capabilities.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211FA15
• Country of Origin: DE

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Current Rating: 5 A
• Manufacturer Part Number: 3RV20211FA15
• Series: 3RV2 Series
• UPC Code: 887621883485
• Frame: S0
• Frequency Rating: 50 to 60 Hz
• Interrupt Rating: 4 kA
• Mounting Type: DIN Rail
• Number Of Poles: 3
• Phase: 3
• Temperature Rating: -20 to 60 deg C
• Trip Type: Magnetic
• Voltage Rating: 690 VAC
• Application: Motor and System Protection Applications
• Standard & Approvals: CSA Certified, CE Certified, IEC Certified, UL Listed
• Auxiliary Contact Rating: 1NO-1NC
• Connection Type: Screw
• Enclosure Type: IP20
• Wire Size: 16 to 12 AWG
• Trip Range: 65 A
• Power Rating: 4 kW
