Siemens 3RV20211DA10 msp s0 2.2 - 3.2a

Product Description

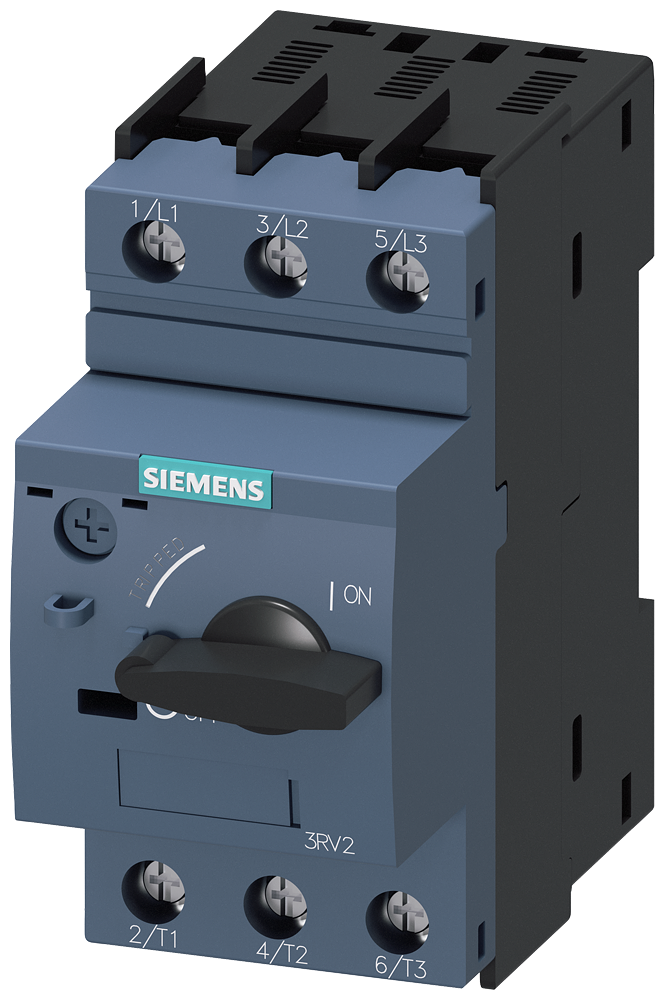

The SIEMENS 3RV20211DA10 is a motor starter protector (MSP) used as a manual motor controller and in group installations. It reliably protects equipment during a short circuit. It features a lockable operating mechanism for manual closing/opening and is designed for flexible assembly using screw and spring-type terminals. This circuit breaker protects motors, starters, transformers, and UL 489 applications.

• Used as Manual Motor Controller
• Suitable for Group Installation
• Reliably protect equipment during a short circuit

Product Highlights

The SIEMENS 3RV20211DA10 motor starter protector protects equipment during short circuits and offers flexible assembly.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211DA10
• Country of Origin: Germany

Technical Specifications

• GTiN: 00040892942200
• Type: 3RV2 circuit breaker
• Brand: SIEMENS
• Depth: 97 mm
• Width: 1.930 in
• Height: 4.02 Inch
• Length: 4.02 Inch
• Voltage: 690 Volt
• Sub Brand: SIRIUS
• Product UPC: 04089294220
• 12-Digit UPC: 040892942200
• Applications: Used as Manual Motor Controller and in Group Installation
• TC Connection: screw-type terminals
• Connection Type: Screw Connection
• Number of Poles: 3
• Operating Cycles: 100000
• Country of Origin: Germany
• Operating Temperature: 60 To 20 degrees C
• Environmental Conditions: 80 to 50 C
• Current Rating (Amps): 3.2A
• Manufacturer: Siemens
• Voltage Rating - AC: 690 V
• Series: 3RV2
• Actuator Type: Rotary
• Packaging: Bulk
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: ATEX, CCC, CSA, EAC, IECEx, UL
• Breaker Type: Thermal
• UNSPSC Code: 39120000
• Manufacturer Part Number: 3RV20211DA10
• Terminal Type: Screw
• Unit of Measure: EA
• UPC Code: 040892942200
• MPN: 3RV20211DA10
• GTIN: 4011209902923
• UPC: 4011209902923
• eBay Product ID (ePID): 790237172
• Number of Throws: 2
• Suitable For: Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Control Style: Switch
• Operation Method: On/Off
• Interruption Type: Thermal Circuit Breaker
• Compatible Wire Gauge (AWG): 1-5
• Mounting Style: Fixed, DIN Rail
• Maximum Amperage: 20 A
• Number of Positions: 2
• Current Rating: 3.2 Amp
• Number of Phases: 3
• Material: Plastic, ABS/Plastic
• Electrical Connection: Screw Terminal
• Break Time: Instantaneous
• IP Rating: IP20
• Model: 3RV2021-1DA10
• Starter Size: S00
• Size: 45 Millimeter Width x 96 Millimeter Depth x 97 Millimeter Height
• Motor FLA: 3.2 Amp at 480/600 Volt AC
