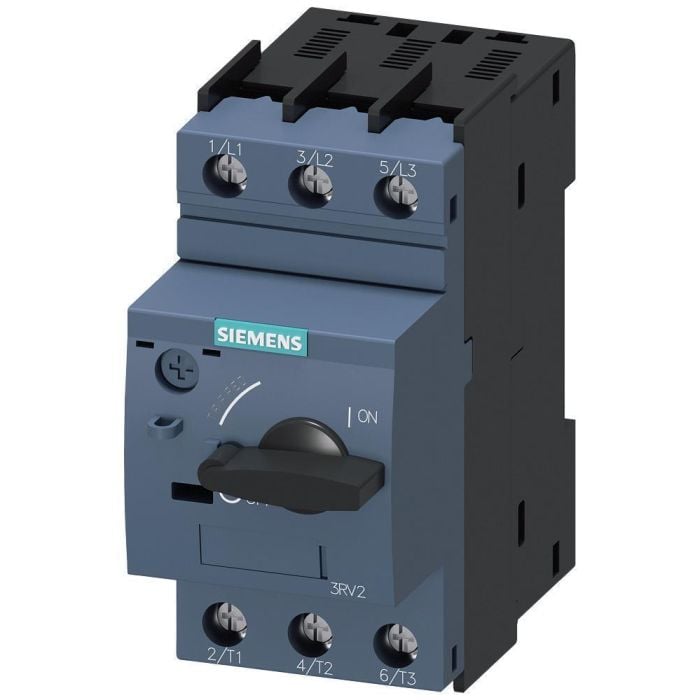

Siemens 3RV20211BA10 Circuit Breaker For Motor Protection 1.4-2A

Product Description

The SIEMENS 3RV20211BA10 circuit breaker is a size S0 device designed for motor protection, featuring a Class 10 A-release of 1.4 to 2 A and an N-release of 26 A. It uses a screw terminal connection and offers standard switching capacity. It reliably protects equipment during a short circuit, isolating the faulty load feeder from the power supply within milliseconds.

• Motor starter protectors
• Lockable operating mechanism for manual closing/opening
• Designed for flexible assembly using screw and spring-type terminals

Product Highlights

Protects motors, starters, transformers, and UL 489 applications. Suitable for DIN rail mounting. Features a thermal magnetic trip.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211BA10
• Country of Origin: DE

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20211BA10
• Current Rating: 1.4 to 2 A
• Series: 3RV2 Series
• Terminal Type: Screw
• Amperage Rating: 1.4 to 2
• Connection Type: Screw
• Enclosure Type: IP20
• Frame: 3RV2/S0
• Frequency Rating: 50/60
• Interrupt Rating: 10
• Mounting Type: DIN Rail
• Number of Poles: 3
• Phase: 3
• Power Rating: 1.1
• Temperature Rating: -20 to 60
• Trip Type: Thermal Magnetic
• Voltage Rating: 690
• Wire Size: 16 to 12 AWG, 14 to 8 AWG
