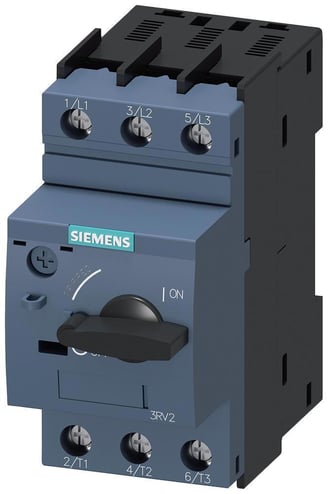

Siemens 3RV20210FA10 Sirius Motor Protection Circuit Breaker 0.5A

Product Description

The Siemens 3RV20210FA10 SIRIUS motor protection circuit breaker is rated at 690 VAC and 0.5 A. It features a thermal/magnetic trip, a 6.5 A trip range, and a screw connection. It is designed with IP20 enclosure and DIN rail mounting. It is suitable for motor circuit protection and hazardous locations.

• Thermal Magnetic Trip
• 690 V AC voltage rating
• DIN Rail Mounting

Product Highlights

The Siemens SIRIUS motor protection circuit breaker offers reliable motor protection with thermal/magnetic tripping and a robust design for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20210FA10
• Country of Origin: Germany

Technical Specifications

• Amperage Rating: 0.5 A
• Connection Type: Screw
• Enclosure Type: IP20
• Frame: S0
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail
• Number of Poles: 3
• Phase: 3
• Power Rating: 180 W
• Series: 3RV2
• Temperature Rating: -20 to 60 deg C
• Trip Range: 6.5 A
• Trip Type: Thermal Magnetic
• Voltage Rating: 690 V AC
• Brand: Siemens
• Part Number #: 3RV20210FA10
• Temperature Rating (Degrees F): -20 to 60 deg C
• Connection type: Screw
• Country of origin: DE
• Manufacturer Name: Siemens
• Category: Circuit Protection
• Current Rating (Amps): 500mA
• Manufacturer: Siemens
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Packaging: Box
• Part Status: Active
• Illumination: None
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• Breaker Type: Thermal Magnetic
• UNSPSC Code: 39120000
• Manufacturer Part Number: 3RV20210FA10
• Unit of Measure: EA
• MPN: 3RV2021-0FA10
• Condition: New Open box
