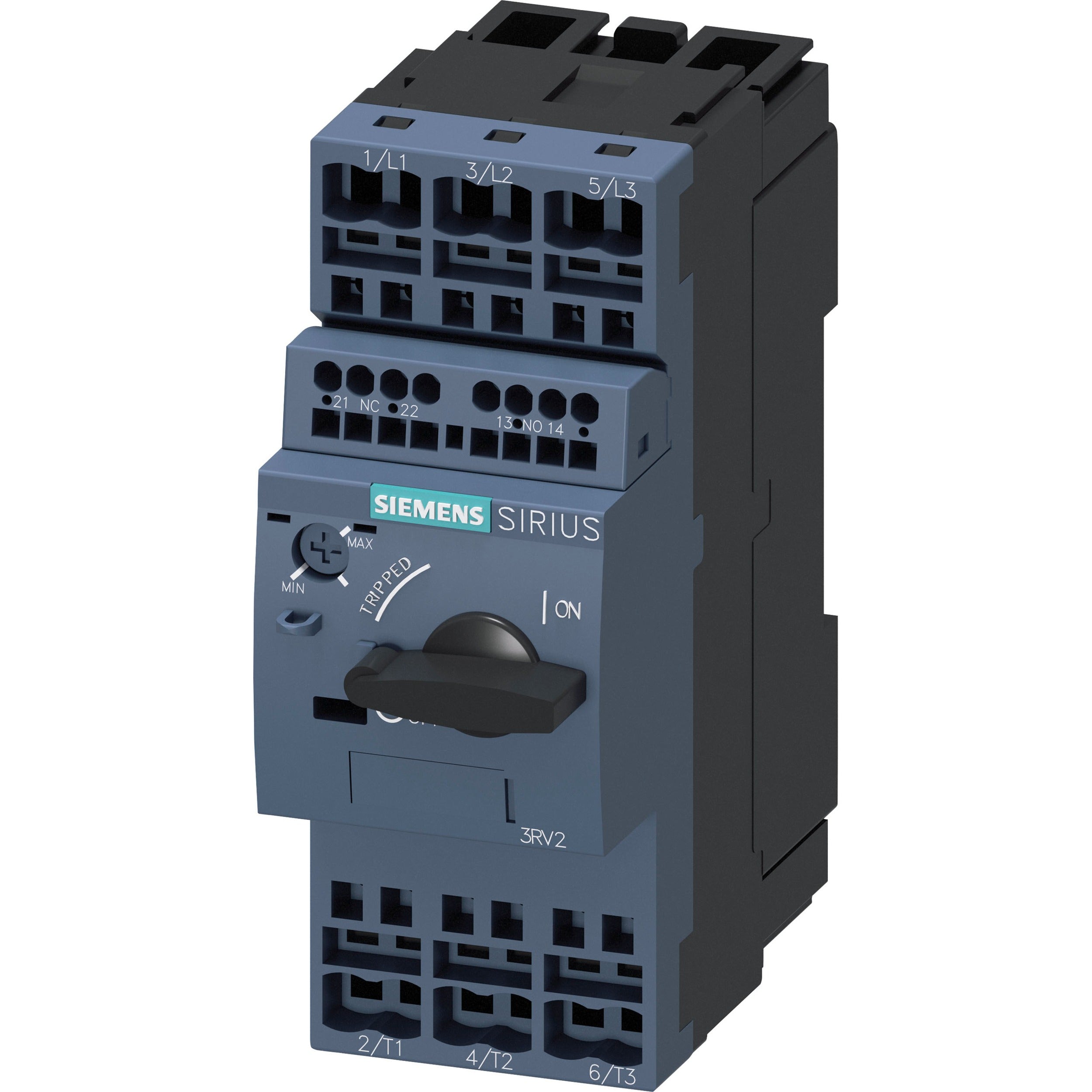

SIEMENS Siemens 3RV2021-4AA25 Thermal-Magnetic Motor Protection Circuit Breaker 7.5 kW 10 HP (Size S0) 3RV20214AA25
SIEMENS Siemens 3RV2021-4AA25 Thermal-Magnetic Motor Protection Circuit Breaker 7.5 kW 10 HP (Size S0) 3RV20214AA25

Siemens 3RV2021-4AA25 Thermal-Magnetic Motor Protection Circuit Breaker 7.5 kW 10 HP (Size S0) 3RV20214AA25

SIEMENS
Brand: SIEMENS
SKU: 3RV2021-4AA25
Availability: In Stock

Ships same day if ordered by 12 pm
$326.09
$326.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Siemens 3RV2021-4AA25 is a thermal-magnetic motor protection circuit breaker from the SIRIUS 3RV20 series designed for motor protection and manual motor starter applications. It is a 3-pole device with an adjustable thermal trip of 10 A–16 A, size S0, and DIN rail mounting with spring connections. The unit includes 1 NO + 1 NC auxiliary contacts, an ON/OFF rotary knob with lockout, and short-circuit breaking capacities and Icu/Ics ratings that vary by voltage.

  • 3-pole thermal-magnetic trip unit, adjustable 10 A–16 A; rated power data includes 4 kW (230 V), 7.5 kW (400/500 V), 11 kW (690 V); 10 HP (460 V)
  • Front-mounted auxiliary contacts 1 NO + 1 NC, ON/OFF rotary knob with handle lockout, DIN rail mount (45 mm) with spring connections
  • Short-circuit breaking capacity up to 65 kA (depending on rating); ultimate Icu up to 100 kA (240 Vac) and service Ics values by voltage

Product Highlights

Thermal-magnetic 3-pole motor protection breaker, size S0, adjustable 10–16 A, DIN-rail mount, 1 NO + 1 NC auxiliary contacts

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 3RV2021-4AA25
  • Country of Origin: Germany
Technical Specifications
Brand
Siemens
Manufacturer Part Number
3RV2021-4AA25
Equivalent Part Number
3RV20214AA25
Series
SIRIUS (3RV20 series)
Product Type
Motor protection circuit breaker (MPCB) / manual motor starter protector
Size
S0
Poles
3-pole (3P3d)
Trip Unit Type
Thermal-magnetic (adjustable)
Rated Current
10 A - 16 A (adjustable)
Rated Active Power (kW)
4 kW (230 Vac); 7.5 kW (400 Vac); 7.5 kW (500 Vac); 11 kW (690 Vac)
Rated Power (HP)
1.5 HP (115 Vac, single-phase); 3 HP (230 Vac, single-phase); 5 HP (200/230 Vac, 3-phase); 10 HP (460 Vac, 3-phase)
Rated Insulation Voltage (Ui)
690 V
Rated Impulse Voltage (Uimp)
6 kV
Connection Type
Spring connections
Mounting Type
DIN rail mounting (45 mm width)
Operating Mode
ON/OFF rotary knob/handle with lockout
Auxiliary Contacts
1 NO + 1 NC (front-mounted / transverse)
Short-Circuit Breaking Rating
65 kA (depending on rating and standard/test condition)
Ultimate Short-Circuit Breaking Capacity (Icu)
Values vary by voltage (e.g., up to 100 kA at 240 Vac; lower at higher voltages)
Service Short-Circuit Current Breaking Capacity (Ics)
Values vary by voltage (lower than Icu; specified per voltage)
Protection Functions
Thermal overload Class 10; short-circuit protection; 3-phase overload with phase loss sensitivity
Protection Settings
Thermal protection adjustable 10 A–16 A; short circuit trip fixed at approx. 13× maximum FLA setting (per manufacturer datasheet)
Dimensions (H x W x D)
106 mm x 45 mm x 91 mm
Electrical Durability (with load)
100,000 operations
Mechanical Durability (no load)
100,000 operations
Weight
1.00 lbs
Standards and Approvals
IEC 60947-1; EN 60947-1; IEC 60947-2; EN 60947-2; IEC 60947-4-1; EN 60947-4-1; UL 508; UL 60947-4-1; CSA C22.2 No.14; CSA C22.2 No. 60947-4-1; UL 489; CSA C22.2 No. 5; IEC 60068-2-27; IEC 60529; EN 50274; ATEX; IEC 81346-2; SN 31920; IEC 61508
Approvals
ATEX, CCC, CSA, EAC, UL
RoHS Status
RoHS3 compliant
EAN
4011209841253
UPC
662643924305
Manufacturer Product Status
Commercialized
Location of Origin
Germany
