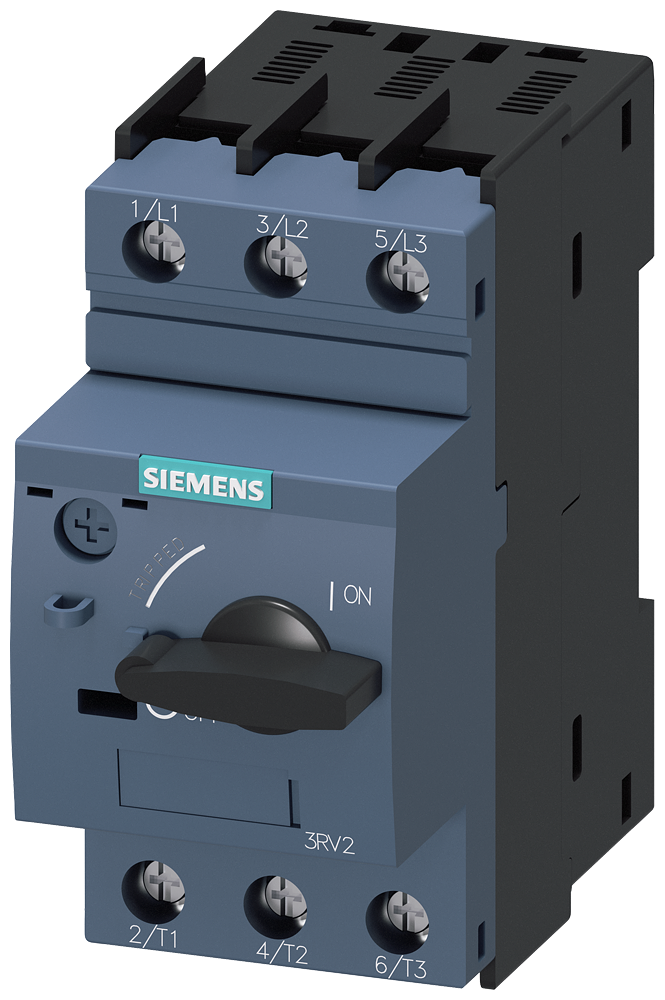

Siemens 3RV2021-1FA10 3-Pole 690 Volt 3.5 to 5 Amp 3-Phase Thermal Magnetic Circuit Breaker

Product Description

The Siemens 3RV2021-1FA10 is a 3-pole, thermal magnetic circuit breaker designed for 3-phase applications up to 690 volts. It efficiently protects motors from overloads and short circuits with a current range of 3.5 to 5 amps.

• Protects motors from overloads and short circuits
• Current range: 3.5 to 5 amps
• Compact design for easy installation

Product Highlights

Siemens 3RV2021-1FA10 thermal magnetic circuit breaker is suitable for motor currents ranging from 3.5 to 5 amps. It includes an integrated thermal overload relay and a short-circuit release for rapid response to short-circuit conditions.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: 3RV2021-1FA10
• GTIN: 00040892942224
• Width: 1.8 inches
• Height: 4 inches
• Length: 3.9 inches
• Weight: 0.785 lb
• Voltage: 690 Volt
• Sub Brand: SIRIUS
• Product UPC: 040892942224
• Applications: Used as Manual Motor Controller and in Group Installation
• Country of Origin: Germany
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Operating Cycles: 100000
• Operating Temperature: 60 -20 C
• Environmental Conditions: 80 to 50 C
• Part #: SIE3RV20211FA10
• Unspc: 39121601
• Frequency Rating: 50/60 Hz
• Power Rating: 4000 W
• Mounting Type: Snap-On/DIN Rail
• Enclosure Type: IP20
• Interrupt Rating: 6 kA
• Minimum Order Qty: 1
• Standard & Approvals: CE Marked|CSA Certified|CCC Marked|EAC Standard|UL Listed
