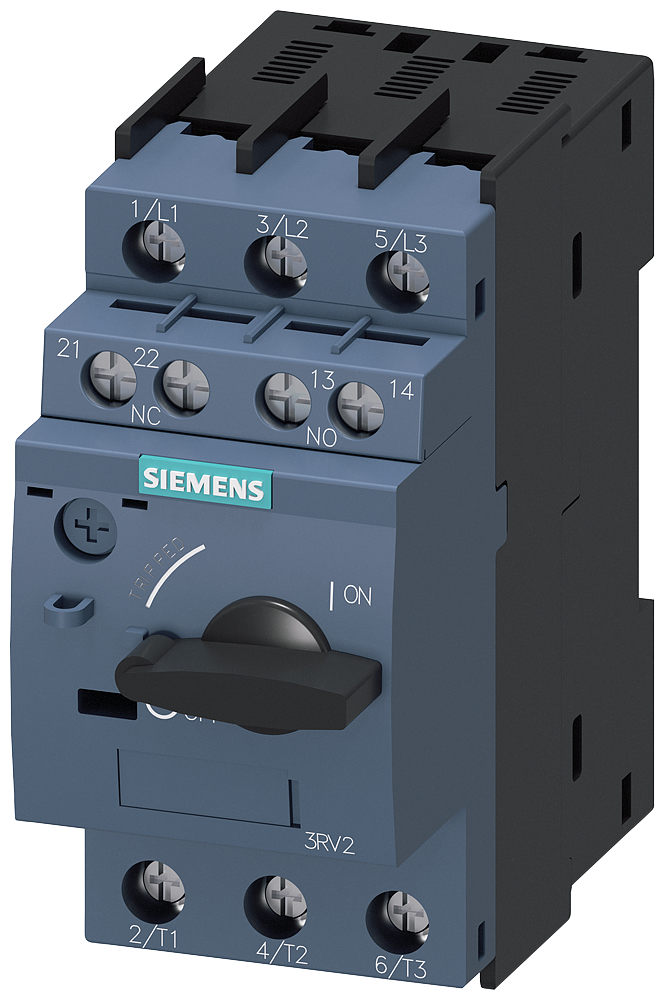

Siemens 3RV20114AA15 MSP S00 11-16A AUX

Product Description

The Siemens 3RV20114AA15 is a circuit breaker designed for motor protection. This device is part of the S00 series and operates within the current range of 10 to 16 amps. It features a screw connection and allows for the connection of an auxiliary switch.

• Operates in a voltage range up to 690 volts.
• Suitable for manual motor control and group installation.
• UL approved with a thermal/magnetic trip mechanism.

Product Highlights

This circuit breaker serves both switching and protection functions for three-phase motors and other loads.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RV20114AA15
• Voltage Rating: 690 VAC
• Number of Poles: 3
• Weight: 0.792 lb
• Operating Temperature: -20 to 60 degrees C
• Environmental Conditions: -50 to 80 degrees C
• Amperage Rating: 10 to 16 A
• Interrupt Rating: 2 kA
