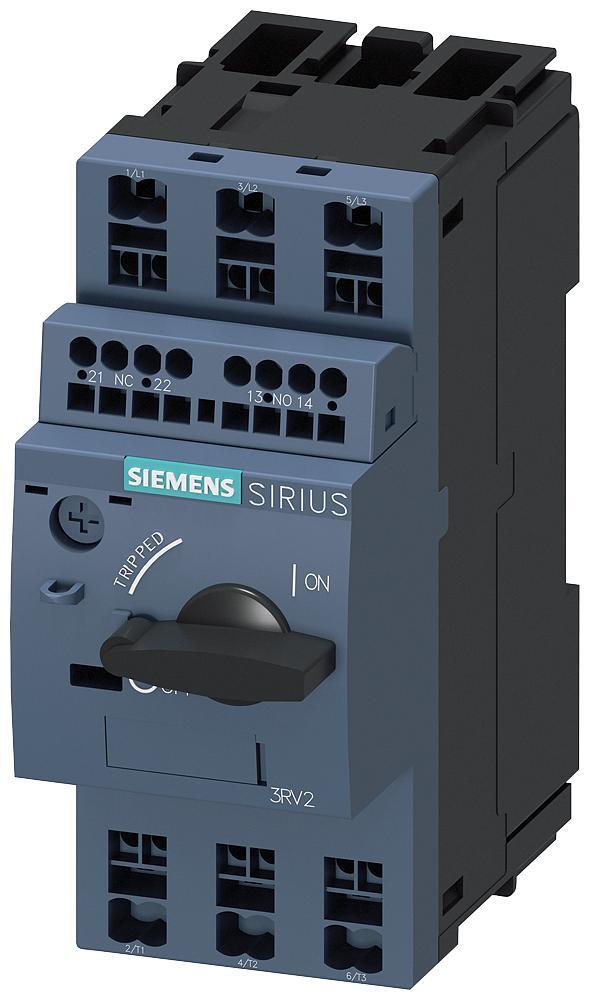

Siemens 3RV20111KA25 Circuit Breaker for Motors S00 9-12.5A Aux 1NO 1NC Spring 3RV2 Series

Product Description

The SIEMENS 3RV20111KA25 is a circuit breaker designed for motor protection, part of the 3RV2 Series. This thermal magnetic breaker features a current rating of 9 to 12.5A and a short-circuit release at 156A. It includes a transverse auxiliary switch with 1NO+1NC contacts and utilizes a spring-loaded connection. It is suitable for motor and system protection applications.

• Designed for motor protection with Class 10 trip
• Features a thermal magnetic breaker with a rotary actuator
• Provides short-circuit protection, isolating faulty load feeders

Product Highlights

Protects motors, starters, transformers, and UL 489 applications. Offers a lockable operating mechanism and flexible assembly with spring-type terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111KA25

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111KA25
• Current Rating: 12.5 A
• Series: 3RV2 Series
• UPC Code: 662643924206
• Category: Circuit Protection
• Part Status: Active
• Mounting Type: DIN Rail
• Breaker Type: Thermal Magnetic
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Number of Poles: 3
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• Frame: S00
• Trip Range: 156 A
• Wire Size: 20 to 12 AWG
• Voltage: 690 V AC
• Amperage: 9 to 12.5 A
• Power: 7.5 kW
• Frequency: 50 to 60 Hz
• Interrupt: 4 kA
• Trip Type: Magnetic Trip
• Poles: 3 Pole
• Phase: 3 ph
• Auxiliary: 1NO-1NC
• Enclosure: IP20
• Mounting: DIN Rail Mounting
• Temperature: -20 to 60 deg C
