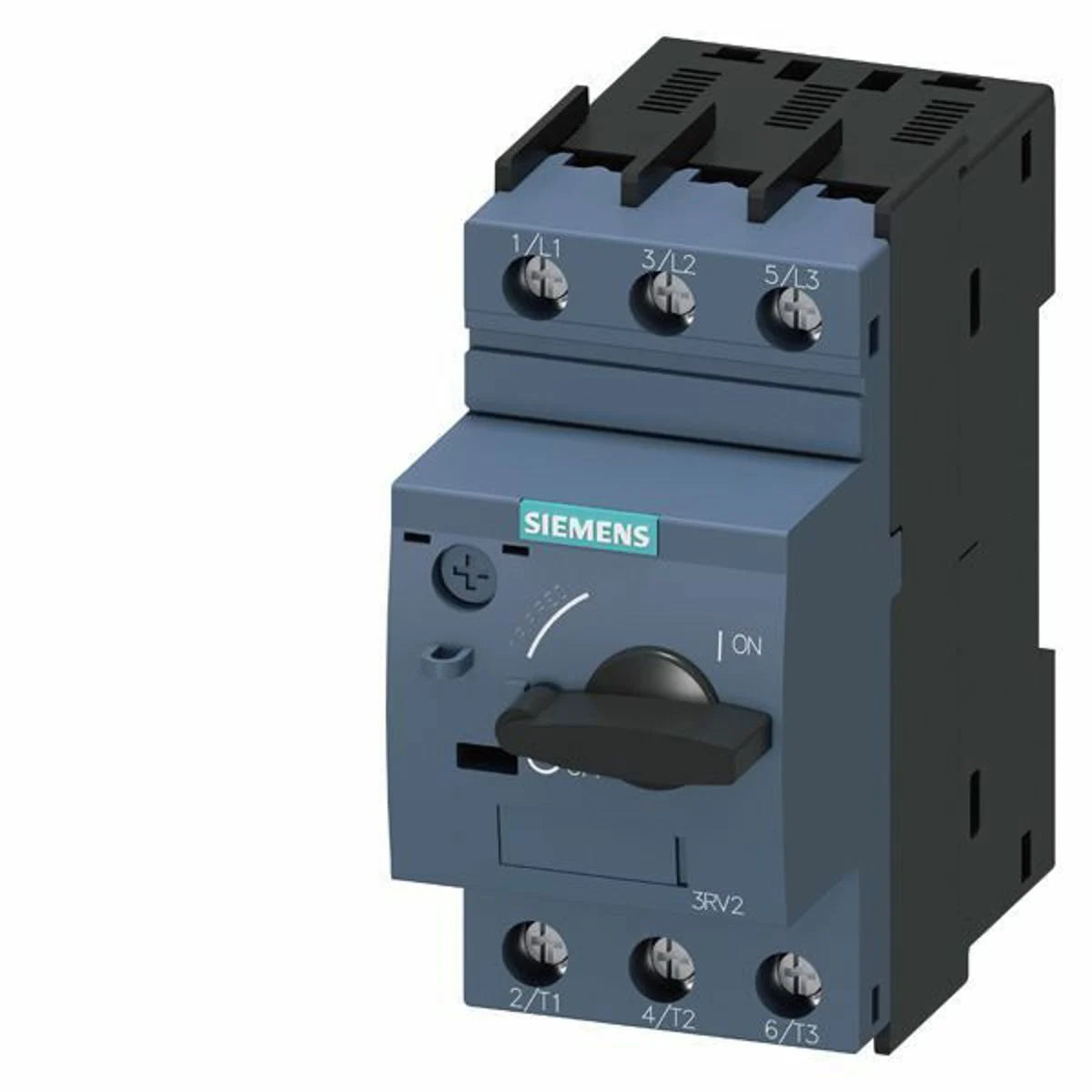

Siemens 3RV20111KA10 Circuit-breaker SZ S00 for Motor Protection 690 VAC 9 to 12.5 A None

Product Description

The Siemens 3RV20111KA10 is a circuit breaker designed for motor protection. It can handle voltages up to six hundred ninety volts and a current range of nine to twelve point five amps. This device provides reliable switching and safety for three-phase motors and is suitable for various applications.

• Manual motor controller functionality
• Screw-type terminal connections
• Compliant with CE, UL, and CSA standards

Product Highlights

The Siemens 3RV20111KA10 circuit breaker is built for durability and efficiency while ensuring the protection of connected motors.

Product Information

Standard Information

• Catalog Number: 3RV20111KA10
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 690 VAC
• Amperage Rating: 9 to 12.5 A
• Number of Poles: 3
• Temperature Rating: -20 to 60 degrees Celsius
• Connection Type: Screw terminals
• Interrupt Rating: 6 kA
• Environmental Conditions: -50 to 80 degrees Celsius
• Standards: CE, UL, CSA, CCC
