Siemens 3RV20111JA15 msp s00 7-10a aux

Product Description

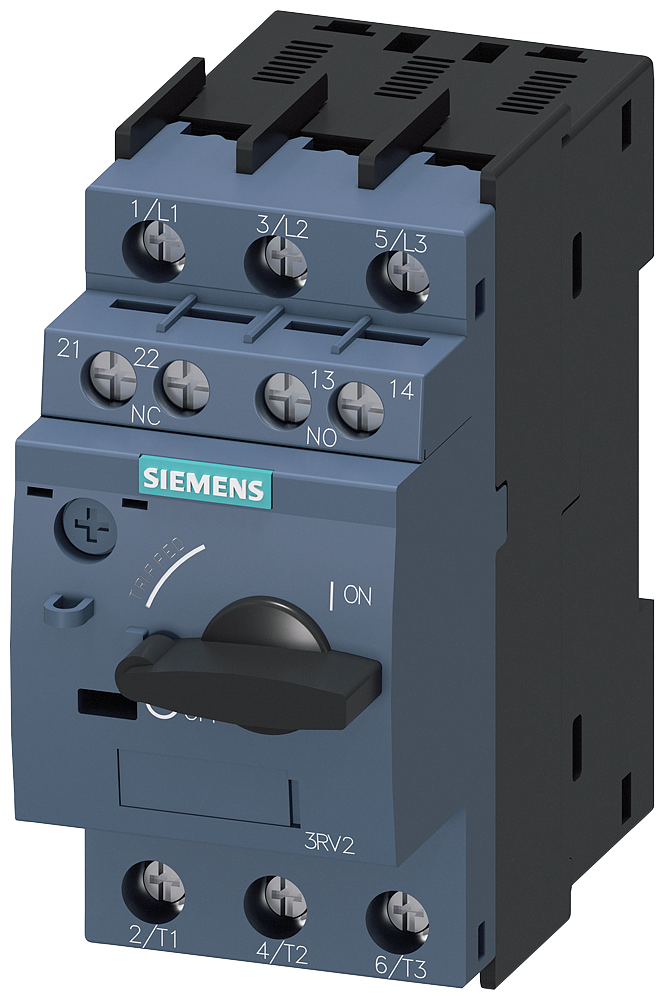

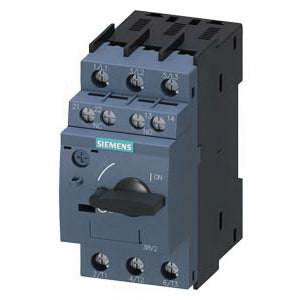

The SIEMENS 3RV20111JA15 is a motor protection switch. This 3-pole switch has a screw connection and dimensions of 97 mm H x 45 mm W x 97 mm D. It is designed for DIN Rail/Snap-On/Threaded Mounting and has an IP20 enclosure. It operates within a temperature range of -20 to 60 deg C.

• Minimization of energy losses through optimization of the bimetal trip units
• Reduction of inherent power loss
• Less heating of the control cabinet

Product Highlights

The SIEMENS 3RV20111JA15 motor protection switch ensures efficient motor protection with optimized bimetal trip units and reduced power loss.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111JA15
• Country of Origin: Germany

Technical Specifications

• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Brand: Siemens
• Width: 1.930 in
• Height: 4.02 Inch
• Length: 4.02 Inch
• Country of Origin: Germany
• Part Number #: 3RV20111JA15
• Trip Range: 7 to 10/130 A
• UNSPSC: 39121601
• Frequency: 50/60 Hz
• Interrupt: 6 kA
• Frame: S00 Frame
• Trip: Thermomagnetic Trip, 7 to 10/130 A Trip
• Pole: 3 Pole
• Phase: 3 ph
• Connection: Screw Connection
• Auxiliary: 1NO-1NC Auxiliary
• Wire: 18 to 14 AWG, 12 AWG Wire
• Enclosure: IP20 Enclosure
• Mounting: DIN Rail/Snap-On/Threaded Mounting
• Temperature: -20 to 60 deg C
• MPN: 3RV20111JA15
• Current Rating (Amps): 10A
• Voltage Rating - AC: 690 V
• Series: 3RV2
• Actuator Type: Rotary
• Packaging: Bulk
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CSA, EAC, IECEx, UL
• Breaker Type: Thermal
• Approval: UL 508, CSA C22.2, CE, CCC, EAC
• Starter Size: S00
• Current Rating: 10 Amp
• Number Of Poles: 3
• Motor FLA: 10 Amp at 480/600 Volt AC
• Poles: 3 Pole
