Siemens 3RV20111HA20 msp s00 5.5-8a spr

Product Description

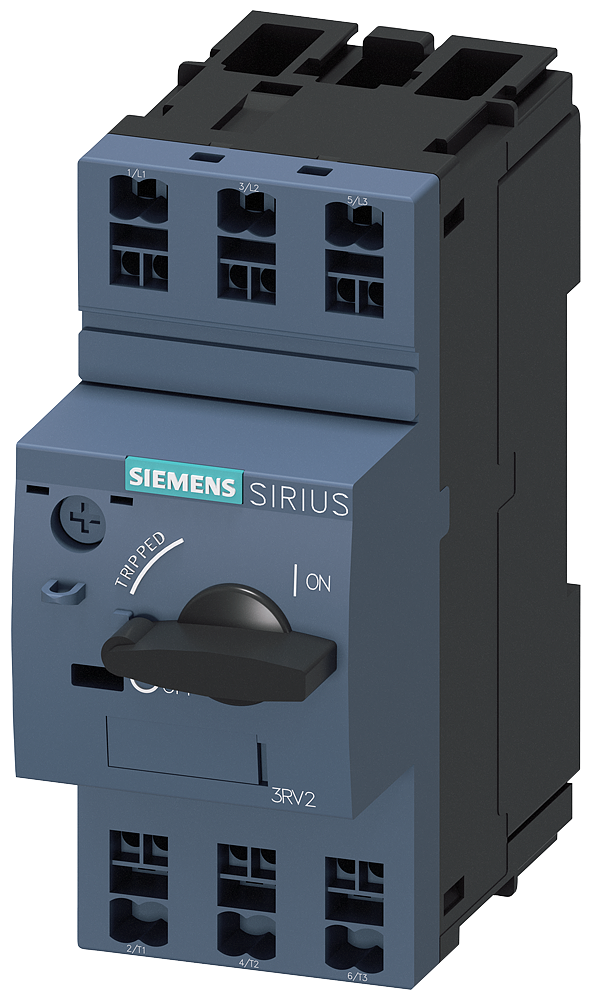

The Siemens 3RV20111HA20 is a circuit breaker for motor protection, class 10, with an A-release of 5.5...8A and N-release of 104A. It features a spring-loaded connection and standard switching capacity. It is designed for use as a manual motor controller and in group installations. The voltage is 690 Volt.

• Protects and switches three-phase motors and other loads.
• Optimized for load feeders.
• Features overload, short-circuit, and phase loss sensitivity protection.

Product Highlights

The Siemens 3RV20111HA20 motor starter protector provides reliable equipment protection during short circuits, preventing fire damage and component harm.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111HA20
• Country of Origin: Germany

Technical Specifications

• Type: MSP
• Brand: Siemens
• Voltage: 690 Volt
• Amperage: 5.5-8 Amp
• Sub Brand: Sirius
• Applications: For Used as Manual Motor Controller and in Group Installation
• TC Connection: spring-loaded terminals
• Connection Type: Spring Pulley Connection
• Number of Poles: 3 Pole
• Operating Cycles: 100000
• Country of Origin: Germany
• Temperature Rating: 60 - 20 degrees C
• Operating Temperature: 60 To 20 degrees C
• Environmental Conditions: 80 - 50 C Storage Temperature
• Manufacturer Part Number: 3RV20111HA20
• Series: 3RV2 Series
• Terminal Type: Spring Contact
• Trip Range: 5.5 to 8/104 A
