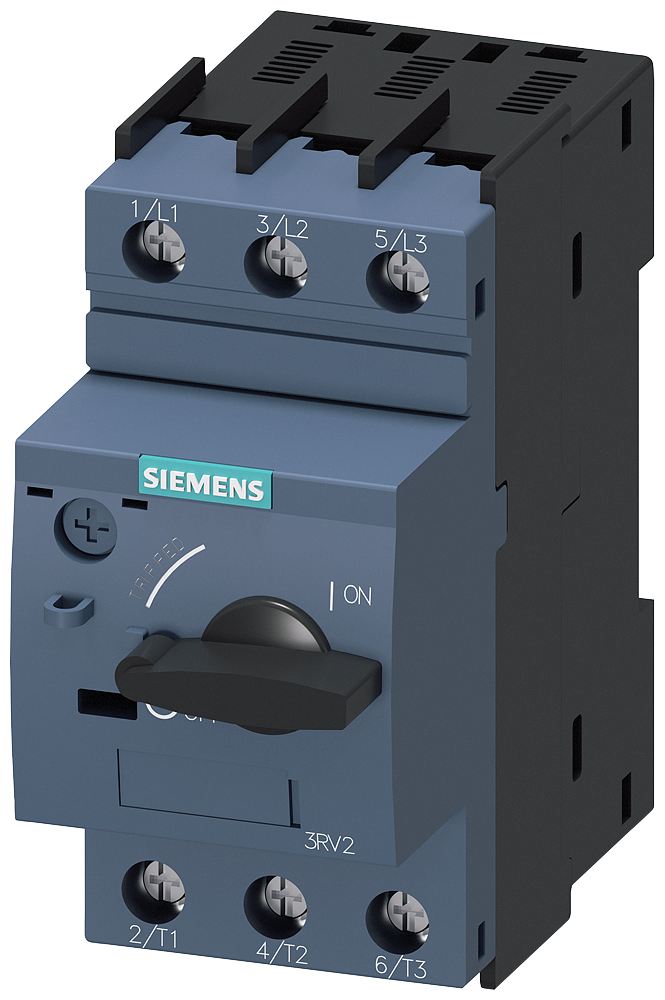

Siemens 3RV20111GA10 3-Pole 6.3 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector

Product Description

The Siemens 3RV20111GA10 is a thermal magnetic motor starter protector designed for reliable motor protection. This device is suitable for three-phase systems operating at up to 690 VAC and can handle currents between 4.5 to 6.3 Amps. It features a screw terminal connection for easy installation.

• Designed for 690 VAC 3-phase applications
• Compact design optimized for load feeders
• Suitable for direct current switching

Product Highlights

The Siemens 3RV20111GA10 provides excellent overload and short-circuit protection and is suitable for various applications, including motor control systems and industrial automation.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: 3RV20111GA10
• Voltage: 690 Volt
• Amperage: 4.5-6.3 Amp
• Number of Poles: 3
• Operating Cycles: 100000
• Country of Origin: Germany
• Temperature Rating: 60 to -20 degrees C
• Dimensions: 4 inches (H) x 2.000 inches (W) x 4.1 inches (L)
