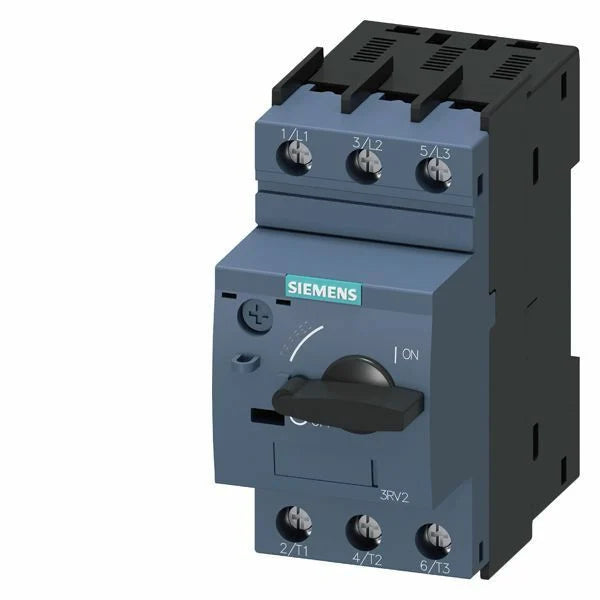

Siemens 3RV20111FA10 Circuit-breaker SZ S00 for Motor Protection Class 10 A-Release 3.5 to 5A N-Release 65A Screw Connection Standard SW Capacity

Product Description

The Siemens 3RV20111FA10 is a circuit breaker designed for motor protection. This device operates at a voltage rating of up to six hundred ninety volts. The current rating varies between three point five to five amps. It is suitable for use in 3-phase motors and can protect loads with rated currents up to forty amps.

• Used as a manual motor controller.
• Equipped with screw-type terminals for connection.
• UL approved for safety.

Product Highlights

This motor protection circuit breaker features a compact design for easy installation and use.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RV20111FA10
• Sub Brand: SIRIUS
• Voltage Rating: 690 V
• Current Rating: 3.5 to 5 A
• Number of Poles: 3
• Environmental Conditions: -50 to 80 °C
• Operating Temperature: -20 to 60 °C
• Connection Type: Screw-type terminals
• Special Features: UL approved as self-protected combination motor controllers
• Weight: 0.7750 lbs
• Dimensions: 97 mm H x 45 mm W x 96 mm D
