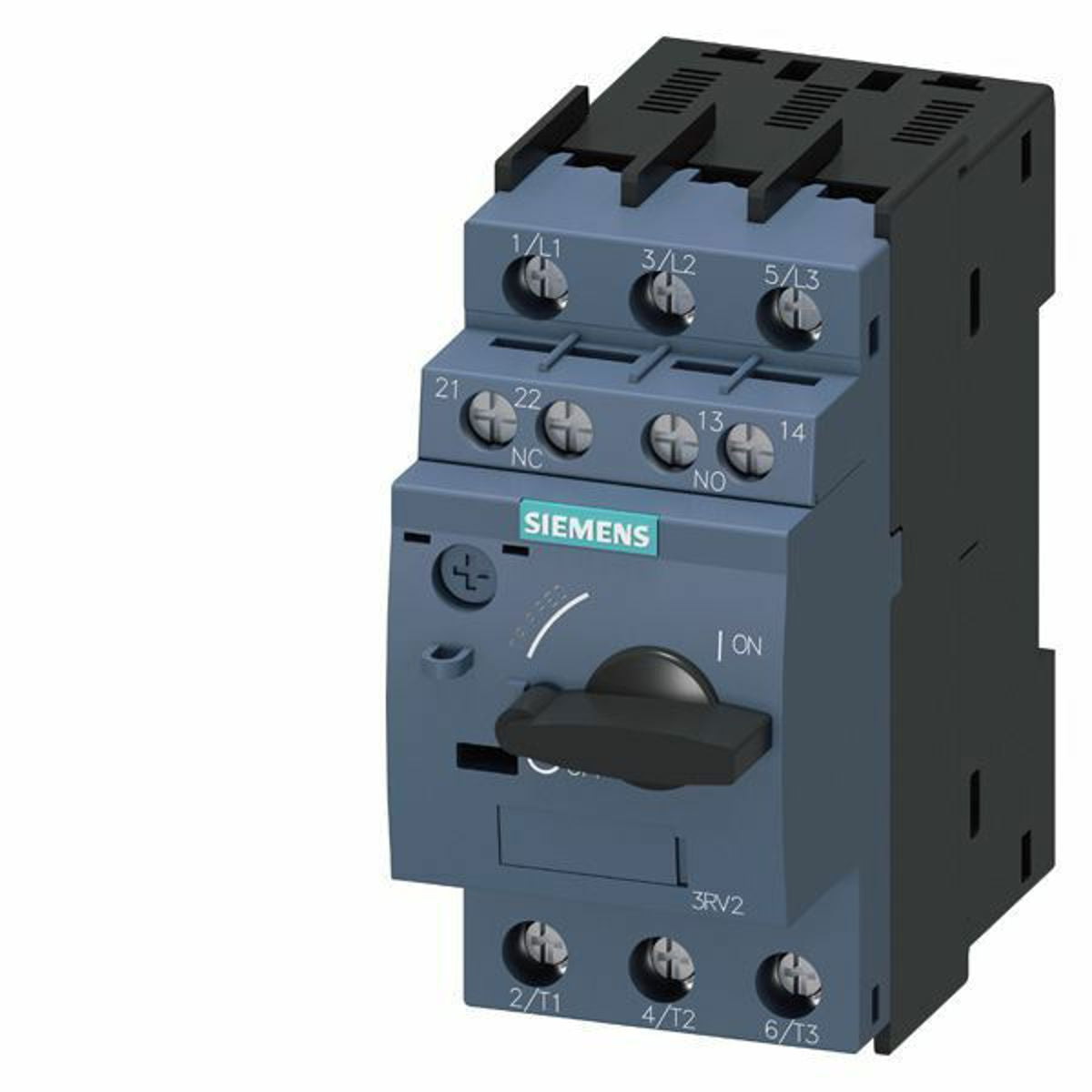

Siemens 3RV20111EA15 Switch_motor - 3RV2011-1ea15 Power 690 VAC (Each)

Product Description

The Siemens 3RV20111EA15 is a switch motor used for manual motor control and group installation. This circuit breaker operates on a voltage of six hundred ninety volts. It is designed with screw-type terminals for easy connection.

• UL approved self-protected combination motor controller
• Rated for a range of two point eight to four amperes
• Three-pole configuration for robust performance

Product Highlights

This product provides reliable protection for three-phase motors up to eighteen point five kilowatts. It is optimized for load feeders and consists of thermal and magnetic trip mechanisms.

Product Information

Standard Information

• Catalog Number: 3RV20111EA15
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 690 VAC
• Current Rating: 2.8 to 4 A
• Number of Poles: 3
• Interrupt Rating: 6 kA
• Environmental Conditions: -50 to 80 degrees Celsius
• Operating Temperature: -20 to 60 degrees Celsius
• Applications: Manual motor control and system protection
• Connection Type: Screw-type terminals
