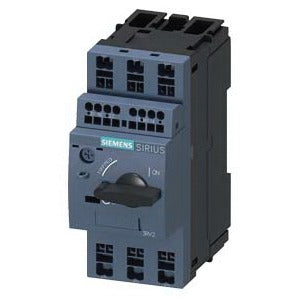

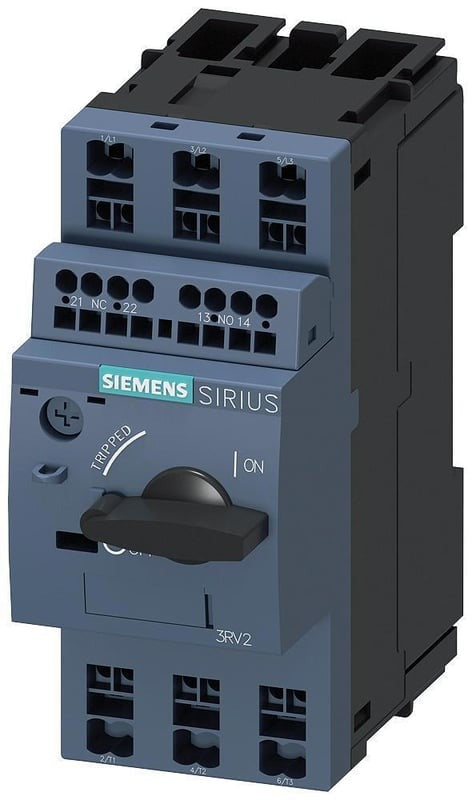

Siemens 3RV20111DA25 Motor Protection Circuit Breaker 2.2 kW (3 Poles) SIE3RV20111DA25

Product Description

Siemens 3RV20111DA25 is a 3-pole motor protection circuit breaker for switching and protecting three-phase motors and load feeders. It is rated 690 V AC with a 2.2 to 3.2 A adjustable trip range, a 10 kA interrupting rating at 690 VAC, and includes one normally open and one normally closed transverse auxiliary contact. The unit mounts on DIN rail, uses a spring connection and has an IP20 enclosure.

• Adjustable trip range 2.2 to 3.2 A; magnetic class 10 trip with 42 A instantaneous release
• Rated 690 V AC, interrupting rating 10 kA at 690 VAC; short-circuit rating up to 100 kA at lower voltages
• 3-pole design with 1 NO + 1 NC auxiliary contact, spring connection, DIN rail / snap-on / threaded mounting

Product Highlights

3-pole motor protection breaker, 2.2–3.2 A trip range, 10 kA interrupt at 690 VAC, 1 NO + 1 NC auxiliary contact, DIN-rail mounting, IP20 enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111DA25
• Country of Origin: Germany
