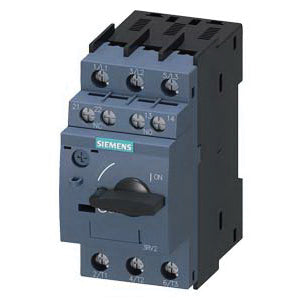

Siemens 3RV20111AA15 Circuit Breaker For Motors 1.1-1.6A

Product Description

The SIEMENS 3RV20111AA15 circuit breaker is designed for motor protection. This S00 frame breaker offers reliable equipment protection during short circuits, isolating faulty load feeders from the power supply within milliseconds to prevent damage. It features a lockable operating mechanism for manual operation.

• Minimizes energy losses through optimized bimetal trip units.
• Reduces inherent power loss and control cabinet heating.
• Suitable for operation in IT systems.

Product Highlights

Protects motors, starters, transformers, and UL 489 applications. Features flexible assembly using screw and spring-type terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111AA15
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RV20111AA15
• Series: 3RV2 Series
• UPC Code: 662643921793
• Trip Range: 1.1 to 1.6/21 A
• Frequency: 50/60 Hz
• Interrupt: 100 kA
• Frame: S00 Frame
• Trip: Thermomagnetic Trip, 1.1 to 1.6/21 A Trip
• Poles: 3 Pole, 3 ph
• Connection: Screw Connection
• Auxiliary: 1NO-1NC Auxiliary
• Wire: 18 to 14 AWG, 12 AWG Wire
• Enclosure: IP20 Enclosure
• Mounting: DIN Rail/Snap-On/Threaded Mounting
• Temperature: -20 to 60 deg C
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Packaging: Bulk
• Part Status: Active
• Illumination: None
• Approval Agency: ATEX, CCC, CSA, EAC, IECEx, UL
• Breaker Type: Thermal
• Current Rating (Amps): 1.6A
