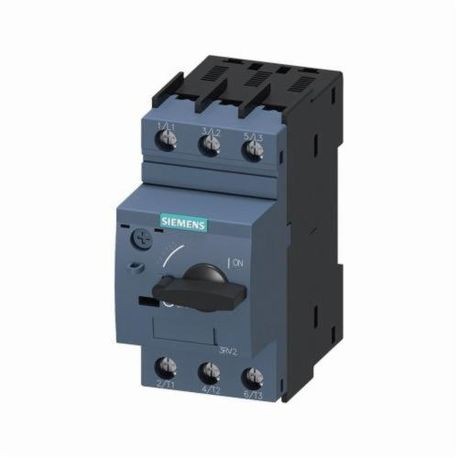

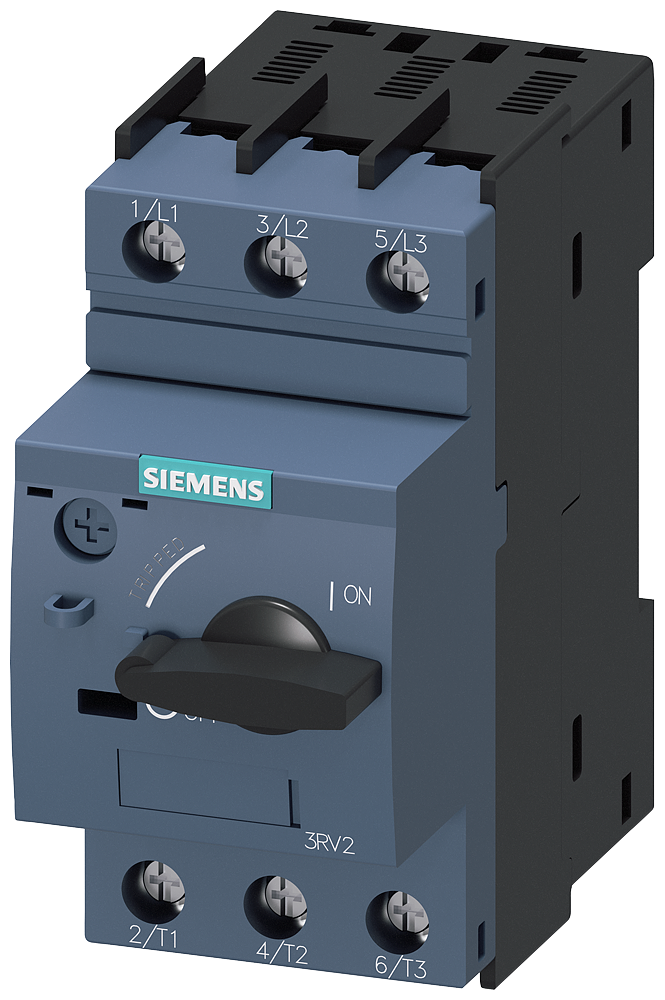

Siemens 3RV20110KA10 3-Pole 1.25 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector

Product Description

The Siemens 3RV20110KA10 is a thermal magnetic motor starter protector designed for motor protection. It is rated for three-phase operation at up to 690 VAC with an amperage range of 0.9 to 1.25 Amps. This unit features screw terminal connections for easy installation. The SIRIUS modular system enhances protection for motors while minimizing downtime in case of overloads or short circuits.

• Three-pole design for three-phase motors.
• Rated for voltages up to 690 VAC and currents from 0.9 to 1.25 Amps.
• Available with screw-type terminals for secure connections.

Product Highlights

Reliable motor protection for various applications, including manual motor control and group installation. Suitable for use in industrial environments with a temperature range of negative twenty to sixty degrees Celsius.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV20110KA10
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RV20110KA10
• Type: 3RV2 circuit breaker
• Voltage: 690 Volts
• Amperage: 0.9-1.25 Amps
• Number of Poles: 3
• Operating Temperature: negative twenty to sixty degrees Celsius
• Weight: 0.245 lb
• Dimensions: four inches high, two point two five inches wide, five point seven inches long
• Connection Type: Screw
