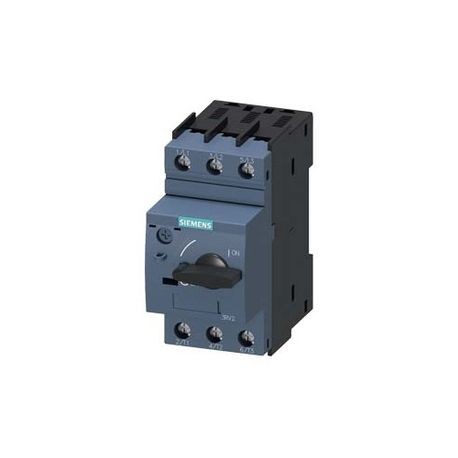

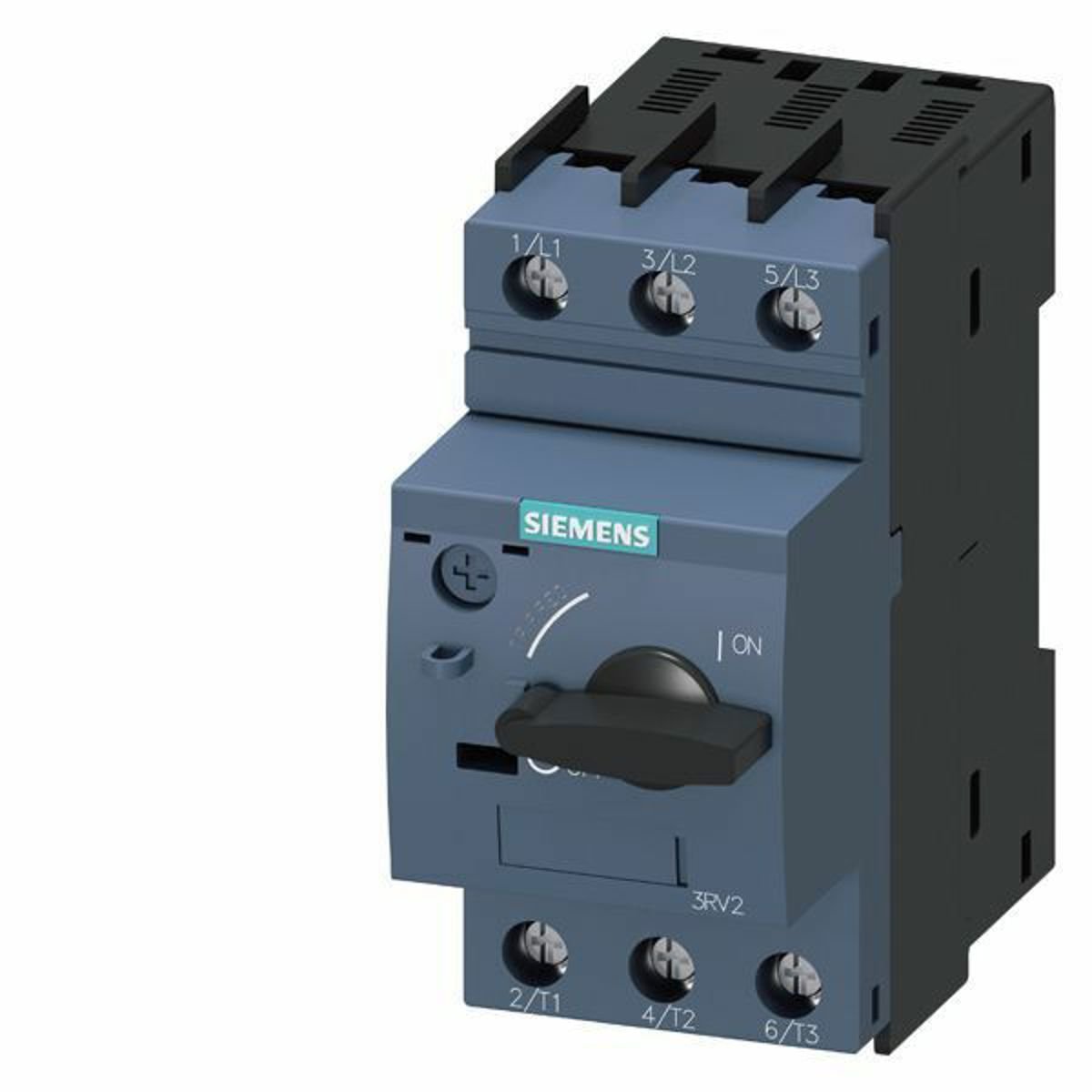

Siemens 3RV20110JA10 Circuit-breaker sz s00 for motor protection class 10 a-rel. 0.7...1a n-release 13a screw connection standard sw capacity

Product Description

The Siemens 3RV20110JA10 is a motor protection circuit breaker designed for 690 VAC applications. It operates within a current range of zero point seven to one amp and features a thermal and magnetic trip mechanism. This circuit breaker is suited for motor control and offers reliable protection for three-phase motors.

• Voltage rating of six hundred ninety volts
• Three poles for effective circuit protection
• Screw-type terminal connection for easy installation

Product Highlights

This product is designed for manual motor control, ensuring efficient operation of motors while safeguarding against overloads.

Product Information

Standard Information

• Catalog Number: 3RV20110JA10
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 690 VAC
• Amperage Rating: 0.7 to 1 A
• Interrupt Rating: 100 kA
• Trip Type: Thermal/Magnetic
• Number of Poles: 3
• Connection Type: Screw
• Environmental Conditions: -50 to 80 degrees Celsius
• Frame Type: S00
