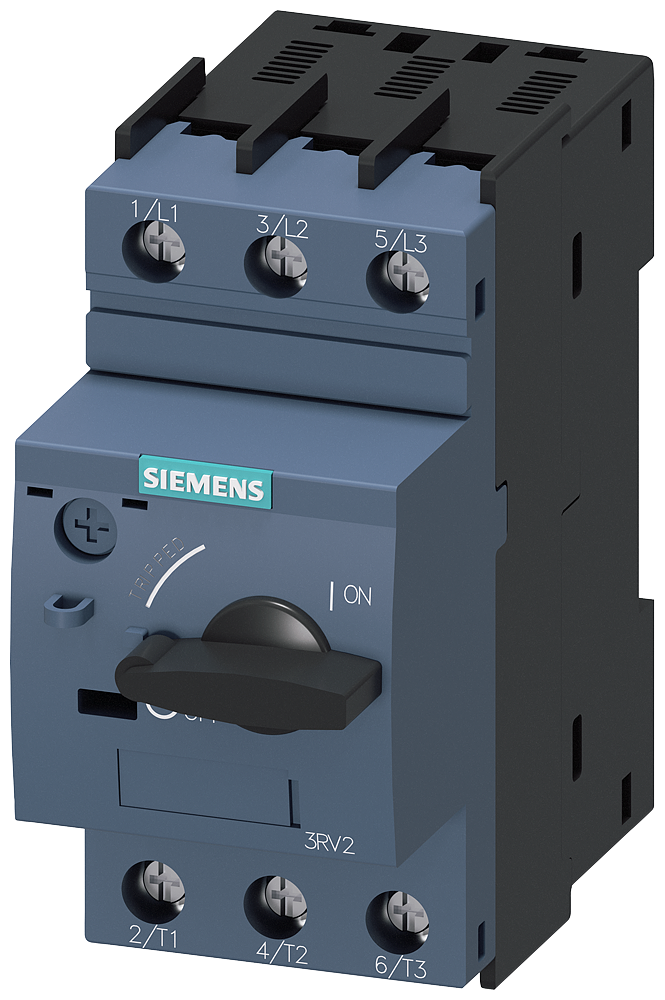

Siemens 3RV20110HA10 3-Pole 0.8 Amp 690 VAC 3-Phase Screw Terminal Thermal Magnetic Motor Starter Protector

Product Description

The Siemens 3RV20110HA10 is a thermal magnetic motor starter protector designed for efficient motor protection. This device operates at a voltage of six hundred ninety volts and accommodates currents from zero point five five to zero point eight amps. It features screw terminal connections for easy installation in various applications.

• Class ten trip rating for reliable motor protection
• Suitable for three-phase motors
• Minimal heat loss and compact design

Product Highlights

Uses include reliable shutdown during short circuits and overload protection. This starter is optimized for load feeders and direct current switching.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV20110HA10

Technical Specifications

• Voltage Rating: 690 Volt
• Amperage Range: 0.55 - 0.8 Amp
• Number of Poles: 3
• Temperature Rating: -20 to 60 degrees C
• Dimensions: 4 inches H x 2.6 inches W x 4.2 inches L
• Weight: 0.895 lb
• Connection Type: screw-type terminals
• Environmental Conditions: 80 to 50 C
