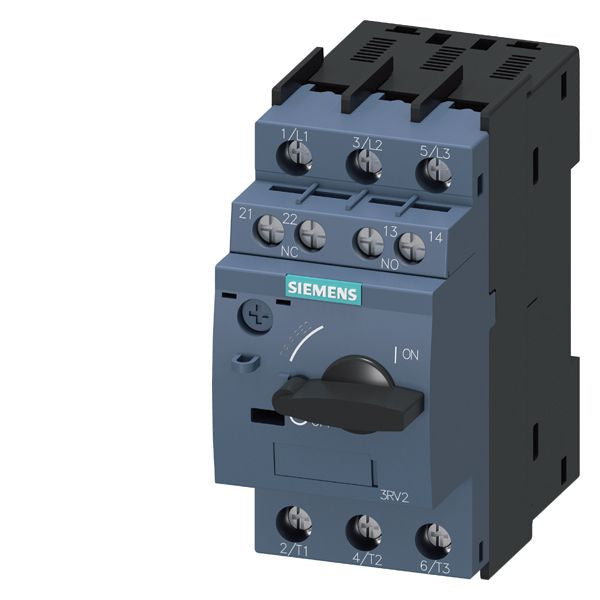

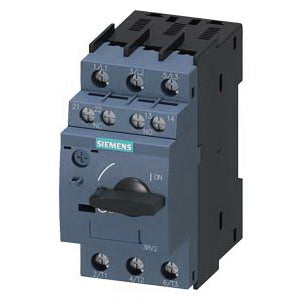

Siemens 3RV20110GA15 Circuit Breaker For Motors 0.45-0.63A

Product Description

The SIEMENS 3RV20110GA15 is a circuit breaker for motor protection, designed for class 10 applications with an A-release range of 0.45 to 0.63A and an N-release of 8.2A. It features a screw connection and a transverse auxiliary switch with 1NO+1NC contacts. This S00 frame size breaker is suitable for standard switching capacity applications. It protects equipment during short circuits and isolates faulty load feeders from the power supply within milliseconds.

• Motor protection circuit breaker with A-release 0.45...0.63A and N-release 8.2A
• Features a transverse auxiliary switch with 1NO+1NC contacts
• Protects motors, starters, transformers, and UL 489 applications

Product Highlights

Provides reliable motor protection with fast short-circuit isolation and flexible assembly options.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV20110GA15
• Country of Origin: DE

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RV20110GA15
• Series: 3RV2 Series
• UPC Code: 662643921595
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Manufacturer: Siemens
• Part Status: Active
• Mounting Type: DIN Rail
• Breaker Type: Thermal Magnetic
• Current Rating (Amps): 630mA
• Voltage Rating - AC: 690 V
• Actuator Type: Rotary
• Number of Poles: 3
• Illumination: None
• Approval Agency: ATEX, CCC, CE, CSA, EAC, IECEx, UL, VDE
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• ECCN: EAR99
• HTSUS: 8536.30.4000
• Trip Range: 0.45 to 0.63/8.2 A
• Application: Used as Manual Motor Controller and in Group Installation
• Auxiliary Contact Rating: 1NO-1NC
• Buy American Compliant: C
• Catalog Number: 3RV20110GA15
• Connection: screw-type terminals
• Connection Type: Screw
• Country of Origin: DE
• Enclosure Type: IP20
• Environmental Conditions: 80 -50 C
• EU RoHS Indicator: C
• Frame: 3RV2/S00
• Frequency Rating: 50/60 Hz
• Height: 4.0200 in
• Length: 4.0200 in
• Phase: 3
• Power Rating: 0.25 kW
• Standard: CE / UL / CSA / CCC
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCCC CertifiedCSA CertifiedUL Listed
• Sub Brand: Sirius
• Temperature Rating: -20 to 60 °C
• Type: 3RV2 circuit breaker
• Width: 1.9300 in
• Wire Size: 18 to 14 AWG, 12 AWG
• Amperage Rating: 0.45 to 0.63 A
• Interrupt Rating: 100 kA
• Trip Type: Thermal Magnetic
• Voltage Rating: 690 VAC
• Operating Temperature: 60 to -20 °C
