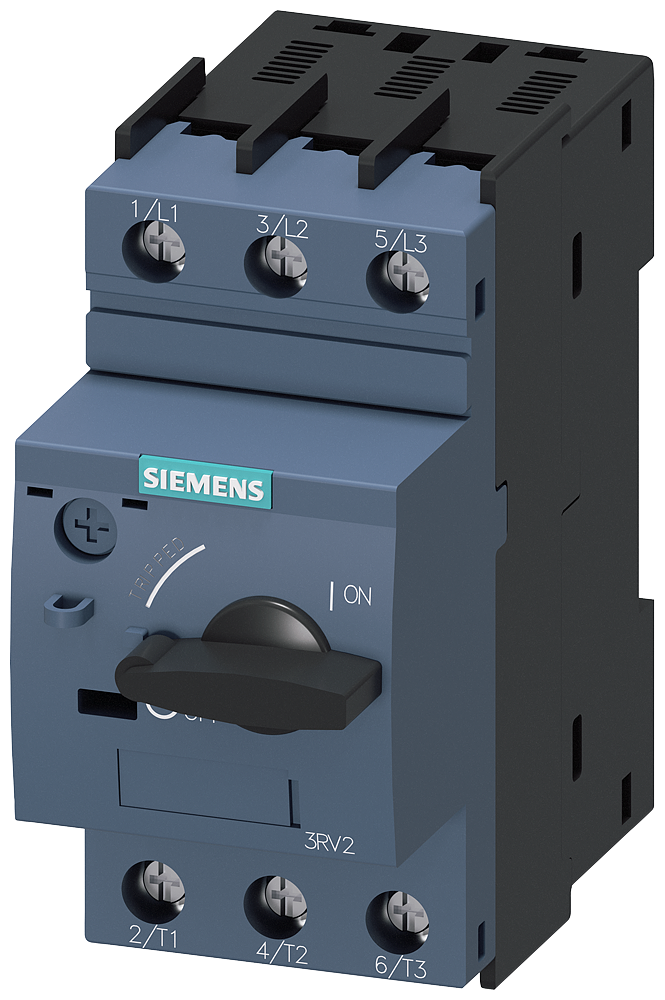

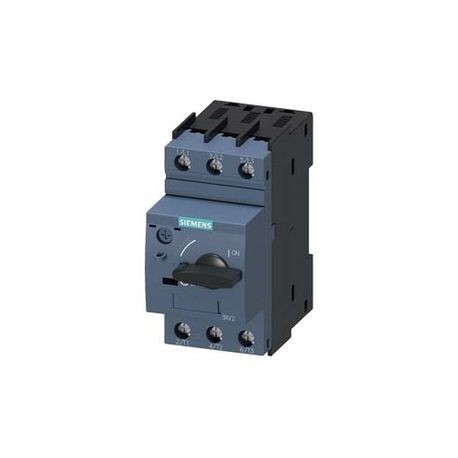

Siemens 3RV20110GA10 MSP S00 0.45-0.63A

Product Description

The Siemens 3RV20110GA10 is a manual motor protection circuit breaker designed to protect motors. This model handles current ratings from zero point four five to zero point six three amps. It features screw connection for easy installation and works well in various environmental conditions.

• Voltage rating: up to 690 volts
• Includes thermal and magnetic trip mechanisms
• Compact design suitable for DIN rail mounting

Product Highlights

Reliable protection for electric motors and other loads, ensuring safety and longevity in electrical systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV20110GA10

Technical Specifications

• Type: Manual Motor Protection
• Amperage Range: 0.45-0.63 A
• Voltage Rating: 690 VAC
• Number of Poles: 3
• Dimensions: 4.02 inches H x 1.93 inches W x 4.02 inches D
• Weight: 0.600 lb
• Trip Type: Thermal/Magnetic
• Interrupt Rating: 100 kA
• Temperature Rating: -20 to 60 degrees C
• Connection Type: Screw connection
• Mounting Type: DIN Rail
• Applications: Manual motor controller and system protection
• Country of Origin: Germany
