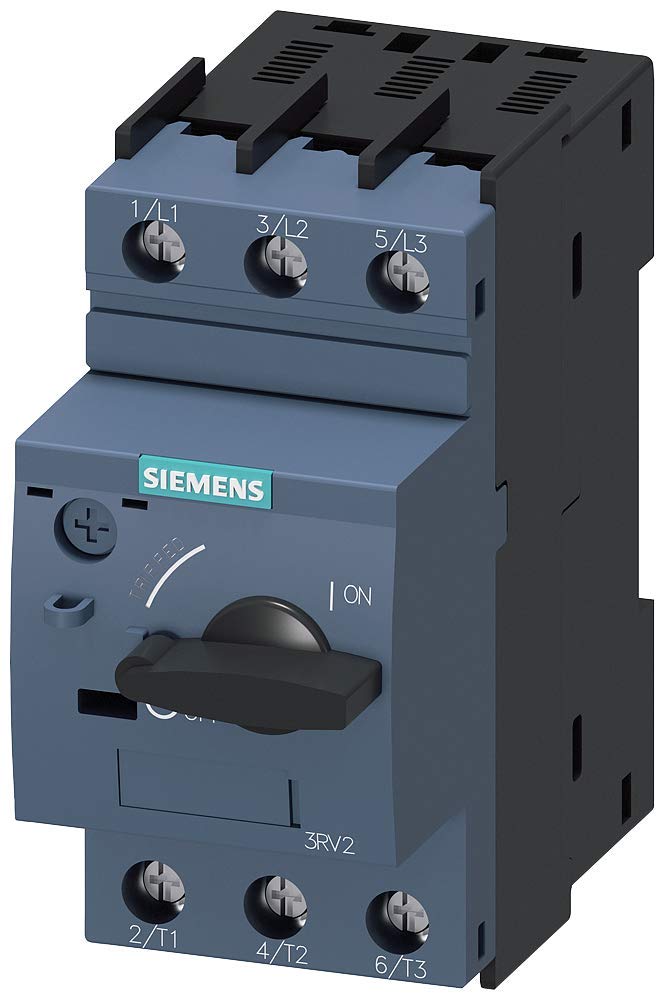

Siemens 3RV2011-4AA10 Manual Motor Starter 3-Pole 16 Amp 690 VAC Screw Terminal

Product Description

The Siemens 3RV2011-4AA10 manual motor starter is a compact device engineered for reliable performance and optimal motor protection. This 3-pole motor protector is designed to manage and safeguard 3-phase motors up to 18.5 kW at 400 VAC, handling currents up to 16 Amps efficiently.

• Equipped with adjustable FLA settings from 10 to 16A.
• Thermal and magnetic trip mechanisms provide dual protection.
• Designed for easy installation with screw and snap-on mounting options.

Product Highlights

This motor starter protector features a size S00 frame and is known for its rugged durability and precise operation under varied environmental conditions ranging from -50 to 80 degrees Celsius. Its high switching capacity and class 10 trip type make it suitable for high-demand applications.

Technical Specifications

• Brand: Siemens
• Type: 3RV2 circuit breaker
• Voltage: 690 VAC
• Amperage: 16 Amps
• Number of Poles: 3
• Connection Type: Screw
• Interrupt Rating: 65 kAIC
• Operating Cycles: 100,000
• Operating Temperature: -20 to 60 degrees Celsius
