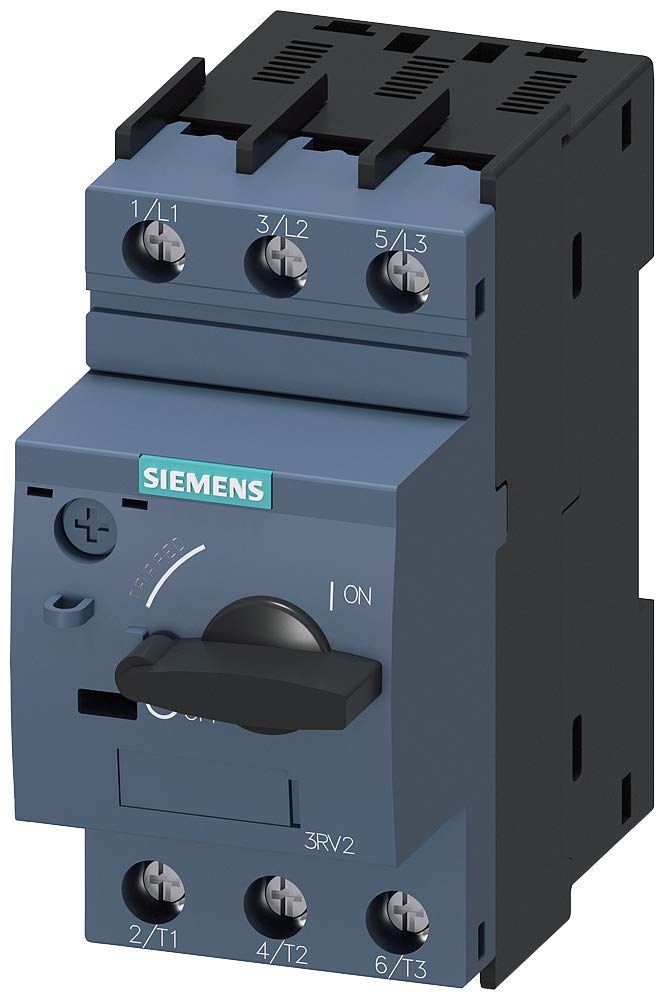

Siemens 3RV2011-1CA10 Motor Starter Protector 1.8 to 2.5 Amp Size S00 Screw Terminal Replacement 3RV20111CA10

Product Description

The Siemens 3RV2011-1CA10 Motor Starter Protector, designed for motor protection, is essential for ensuring efficient and reliable electrical circuit control. Known for its compact, climate-resistant construction, it is optimized for load feeders and compatible with both IE3 and IE4 motors.

• Equipped with a Class 10 overload trip for safe operations.
• Features screw terminals for secure and vibration-proof connections.
• Integrated with worldwide approvals, including IEC and UL/CSA, for broad application scope.

Product Highlights

This motor protector excels in safeguarding against short-circuits and overload, ensuring durable performance under varied environmental conditions from 60 to -20 degrees Celsius. It supports multiple infeed options, significantly reducing main circuit wiring.

Product Information

Standard Information

• Type: 3RV2 circuit breaker
• Brand: Siemens
• Sub Brand: Sirius
• Country of Origin: Germany

Technical Specifications

• Voltage: 690 Volt
• Amperage: 1.8-2.5 Amp
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Operating Temperature: 60 to -20 degrees Celsius
• Environmental Conditions: 80 to -50 C
