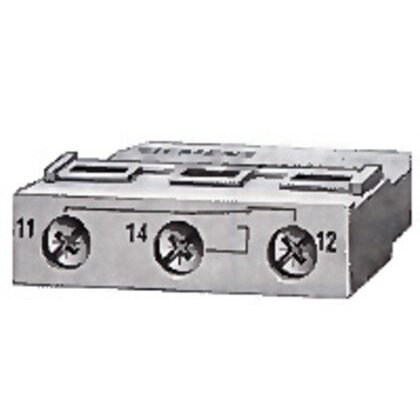

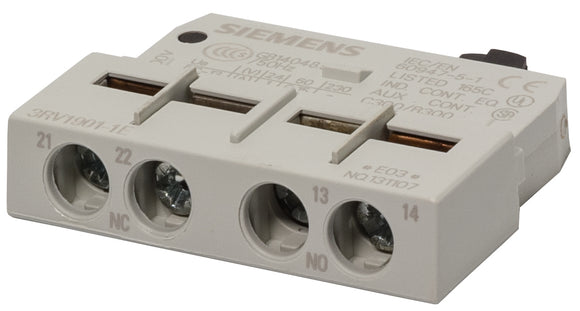

Siemens 3RV1901-1E Auxiliary Switch

Product Description

The SIEMENS 3RV1901-1E is an auxiliary contact block for the 3RV1 Motor Protectors size S00-S3. It provides extra contacts for signaling and other motor operations. It is suitable for use with S00, S0, S2 and S3 Circuit Breakers for electrical wiring needs.

• Auxiliary contact block for 3RV1 Motor Protectors size S00-S3
• Front mounted auxiliary
• 1 N.O. and 1 N.C. contact

Product Highlights

The Siemens 3RV1901-1E auxiliary switch provides reliable switching for motor protection applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1901-1E
• Country of Origin: United States

Technical Specifications

• Approval: UL, CSA, CCC
• Contact Configuration: 1NO-1NC
• Contact Rating: 230 VAC/60 VDC, 10 Ampere (AC-12), 2 Ampere (AC-15), 1 Ampere (DC-13)
• Manufacturer Name: Siemens
• Mounting Location: Front
• Product UPC: 754554409542
• Terminal Type: Screw
• Type: Auxiliary Switch
• Used On: 3RV1 Series Motor Starter Protector/Circuit Breaker
• For Motor Protector: 3RV1011, 3RV1021, 3RV1031, 3RV1041
• Number of Contacts: 2
• Catalog ID: SIE3RV19011E
• Connection Type: Thread
• Suitable For Use With: S00, S0, S2 and S3 Circuit Breakers
• Voltage Rating: 24 VAC
• Standard & Approvals: UL Listed, CCC, CE, CSA Certified, EAC, RoHS Compliant
• Amperage Rating: 2 A
• Brand: Siemens
• Model: 3RV1901-1E
• MPN: 3RV1901-1E
• Manufacturer Part Number: 3RV19011E
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Series: 3RV19 Series
