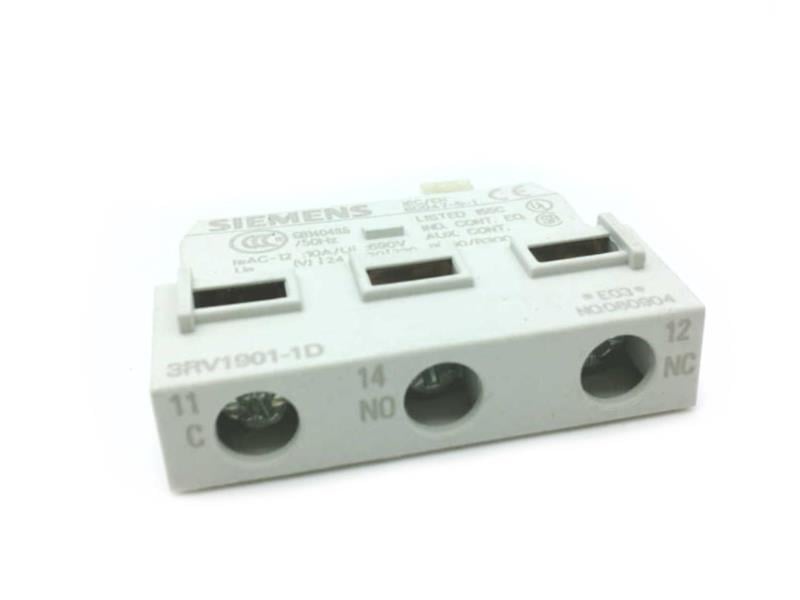

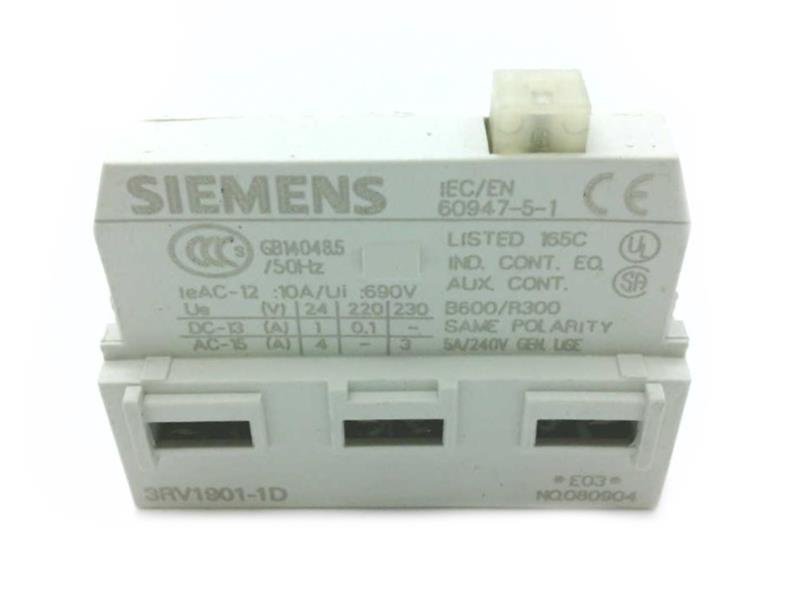

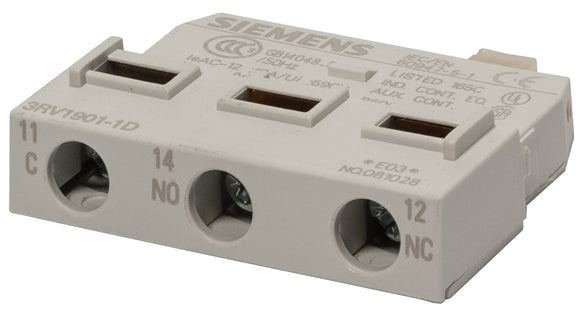

Siemens 3RV1901-1D Auxiliary Switch 1CO For Circuit Breaker

SIEMENS
Brand: SIEMENS
SKU: 3RV1901-1D
Availability: In Stock

Ships same day if ordered by 12 pm
$64.04
$64.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SIEMENS 3RV1901-1D is an auxiliary contact block for the 3RV1 Motor Protectors size S00-S3. It is a front mounted auxiliary contact with SPDT (Single Pole, Double Throw) contacts. It can be inserted transversely on the front, and the overall width remains unchanged.

  • Front mounted auxiliary contact
  • SPDT (Single Pole, Double Throw) contacts
  • For use with Size S00, S0, S2, S3 Circuit Breakers

Product Highlights

The SIEMENS 3RV1901-1D auxiliary contact block is designed for use with Sirius 3RV motor starter protectors.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 3RV1901-1D
  • Country of Origin: Czech Republic
Technical Specifications
Article Number (Market Facing Number)
3RV1901-1D
Product family
Not available
Product Lifecycle (PLM)
PM500:Discontinued Product or end of PLM & Support
PLM Effective Date
End of product lifecycle since: 01.05.2023
Region Specific PriceGroup / Headquarter Price Group
41E / 41E
Surcharge for Raw Materials
None
Metal Factor
LBP-----
Export Control Regulations
ECCN : N / AL : N
Standard lead time ex-works
20 Day/Days
Net Weight (kg)
0,016 Kg
Packaging Dimension
38,00 x 45,00 x 13,00
Package size unit of measure
MM
Quantity Unit
0 Piece
Packaging Quantity
1
EAN
4011209275737
UPC
754554409535
Commodity Code
85365080
LKZ_FDB/ CatalogID
CC-IC10
Product Group
3719
Group Code
R711
Country of origin
Czech Republic
Compliance with the substance restrictions according to RoHS directive
Since: 01.07.2006
Product class
C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation
Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number
Not available
Number of Contacts
1CO
Suitable For Use With
Size S00, S0, S2, S3 Circuit Breaker
Voltage Rating
690/220 VAC/VDC
Standard & Approvals
CCC Certified, CSA Certified, CE Certified, UL Listed
Amperage Rating
10/0.1 A
Dimensions
45 mm W x 17 mm D x 12 mm H
Connection Type
Plug-In
Weight
0.44 lbs
Brand
Siemens
Model
3RV1901-1D
MPN
3RV1901-1D, 3RV1
Country of Origin
China
Condition
New – Open box
