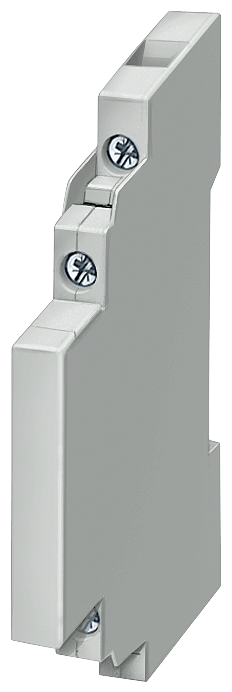

Siemens 3RV1901-1C Auxiliary Switch, 690/220 VAC/VDC, 10/0.25 A, 2NC Contacts, For Use With Size S00, S0, S2, S3 Circuit Breaker

Product Description

Siemens 3RV1901-1C Auxiliary Switch is designed for use with circuit breakers in the S00, S0, S2, and S3 sizes. This model supports both AC and DC applications with a voltage rating of six hundred ninety and two hundred twenty volts. The switch features two normally closed contacts rated for ten amps at six hundred ninety volts or zero point twenty-five amps at two hundred twenty volts.

• Compatible with Size S00, S0, S2, S3 circuit breakers
• Plug-in connection for easy installation
• Meets CE, CSA, UL, and CCC standards

Product Highlights

Ideal for expanding the functionality of Siemens circuit breakers by offering additional auxiliary contact options.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Czech Republic

Technical Specifications

• Voltage Rating: 690/220 VAC/VDC
• Amperage Rating: 10/0.25 A
• Number of Contacts: 2NC
• Mounting Type: Plug-in Fixing
• Dimensions: 1.460 in W x 3.31 in H x 3.94 in L
• Weight: 0.022 lb
• GTIN: 00754554409528
• UPC: 754554409528
• Standards & Approvals: CCC Certified, CSA Certified, CE Certified, UL Listed
