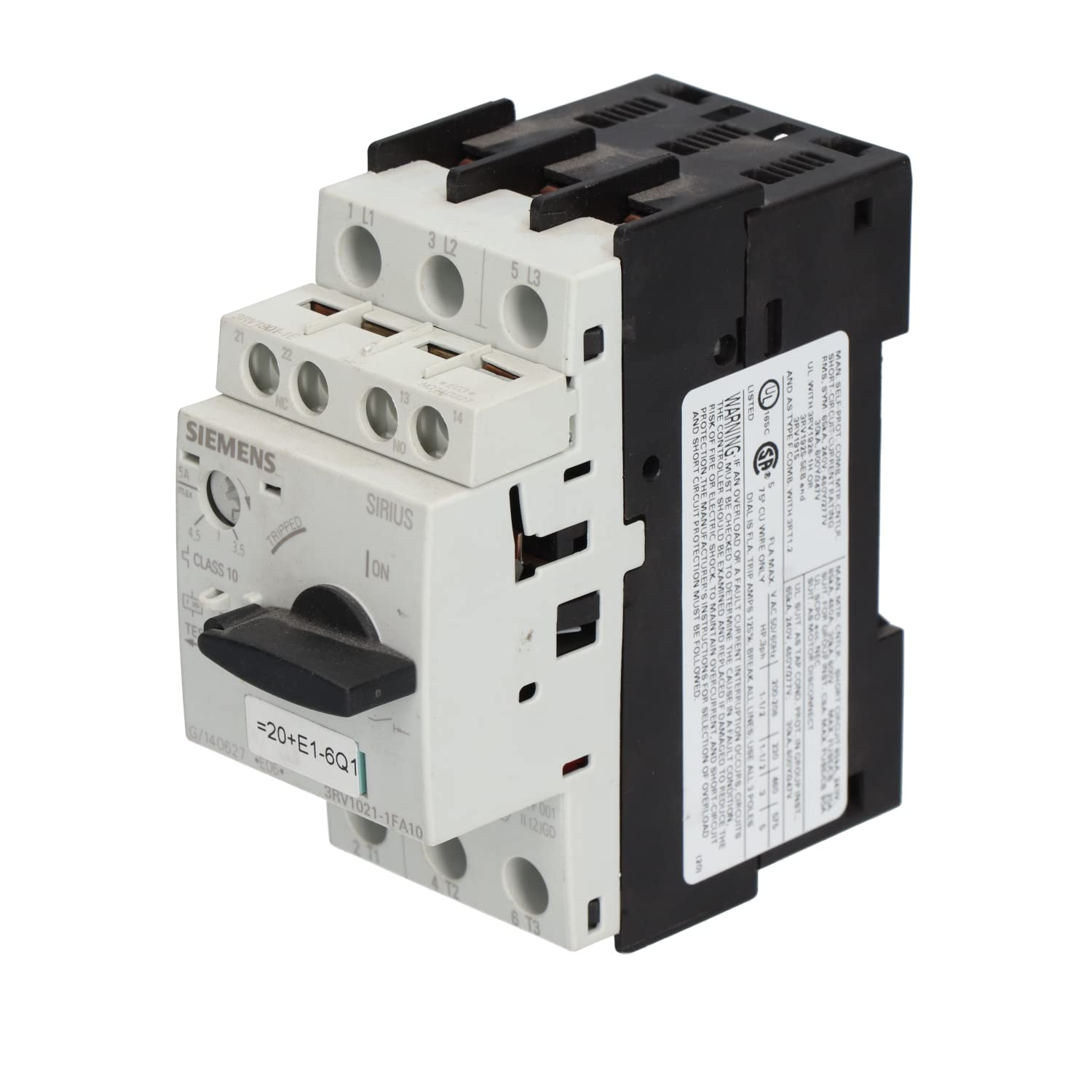

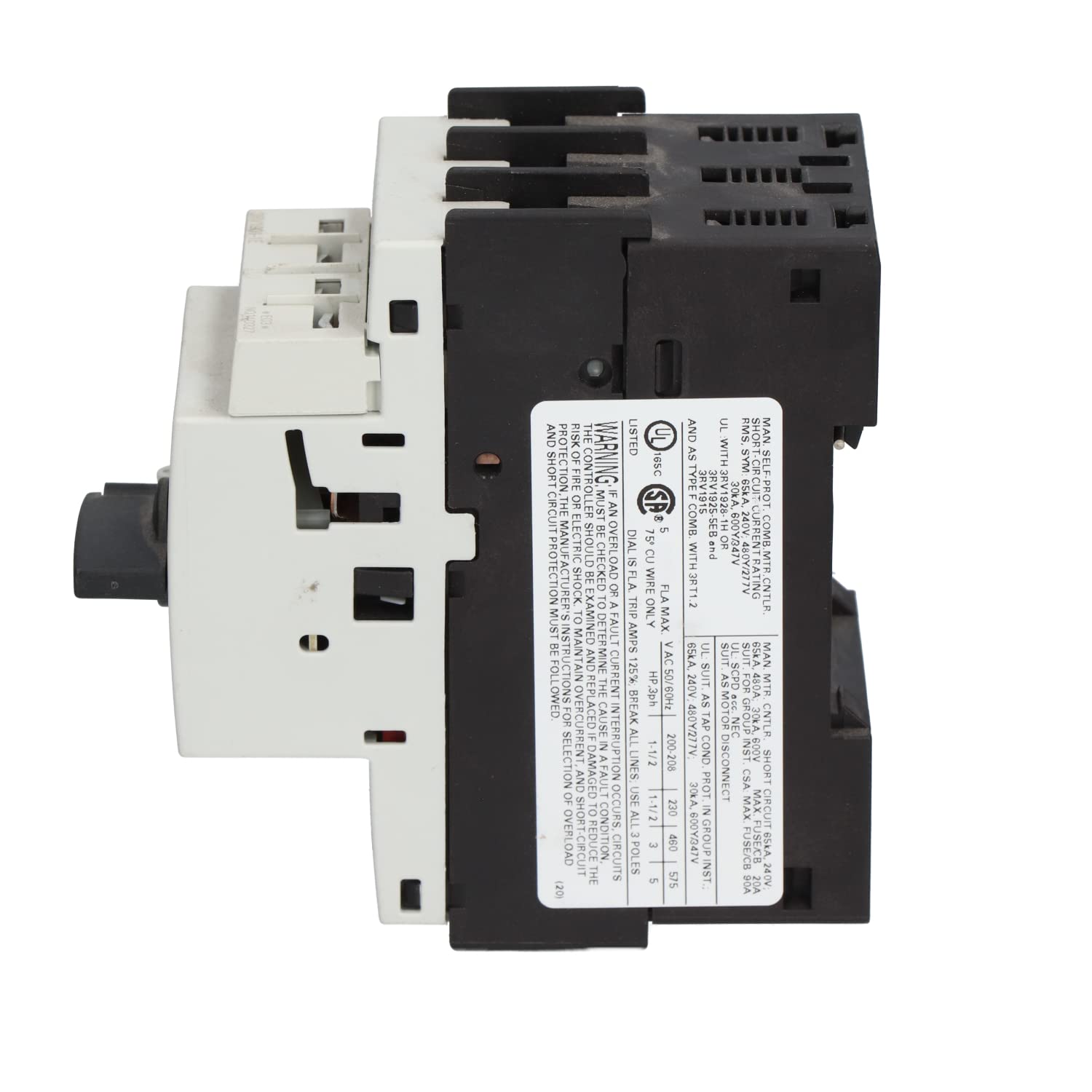

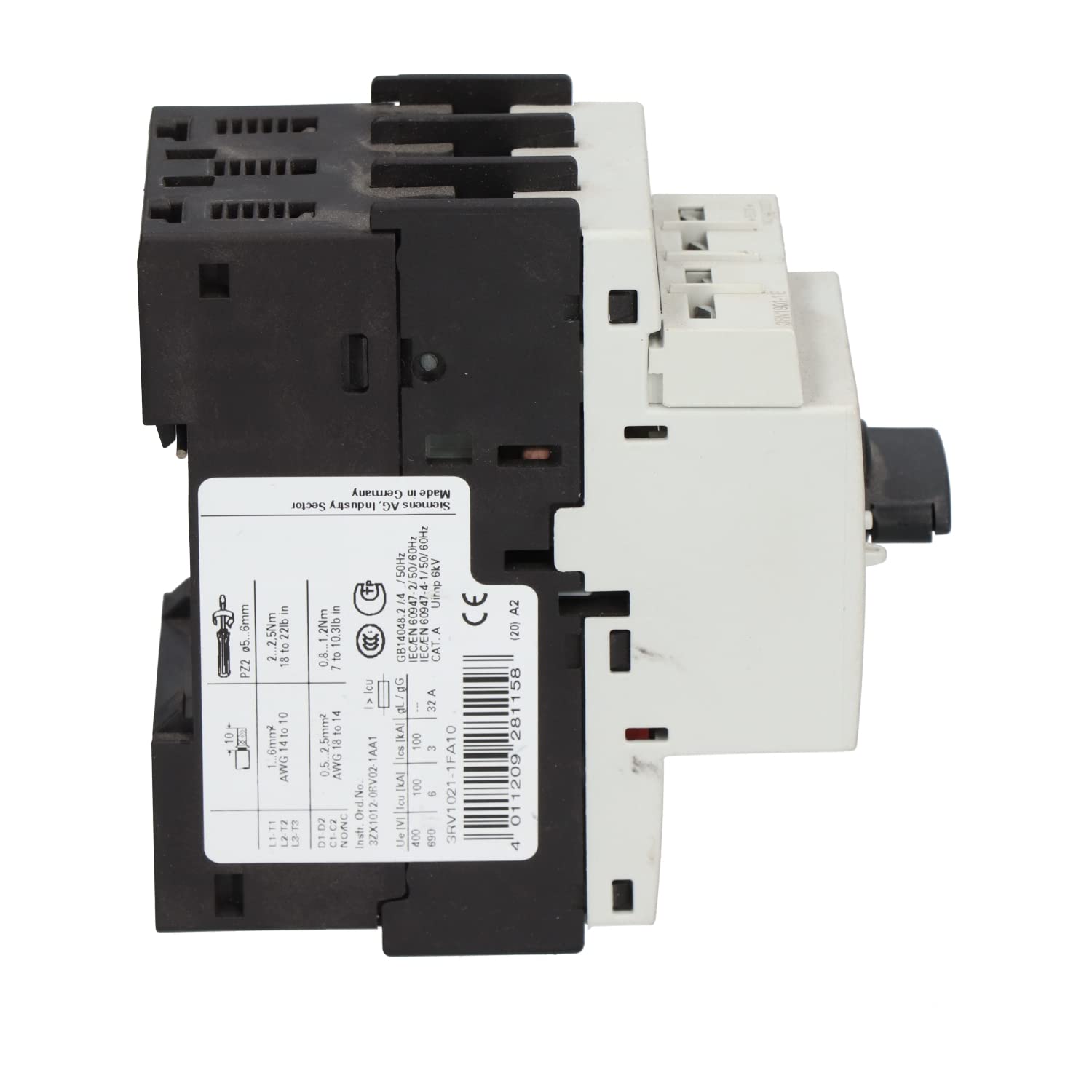

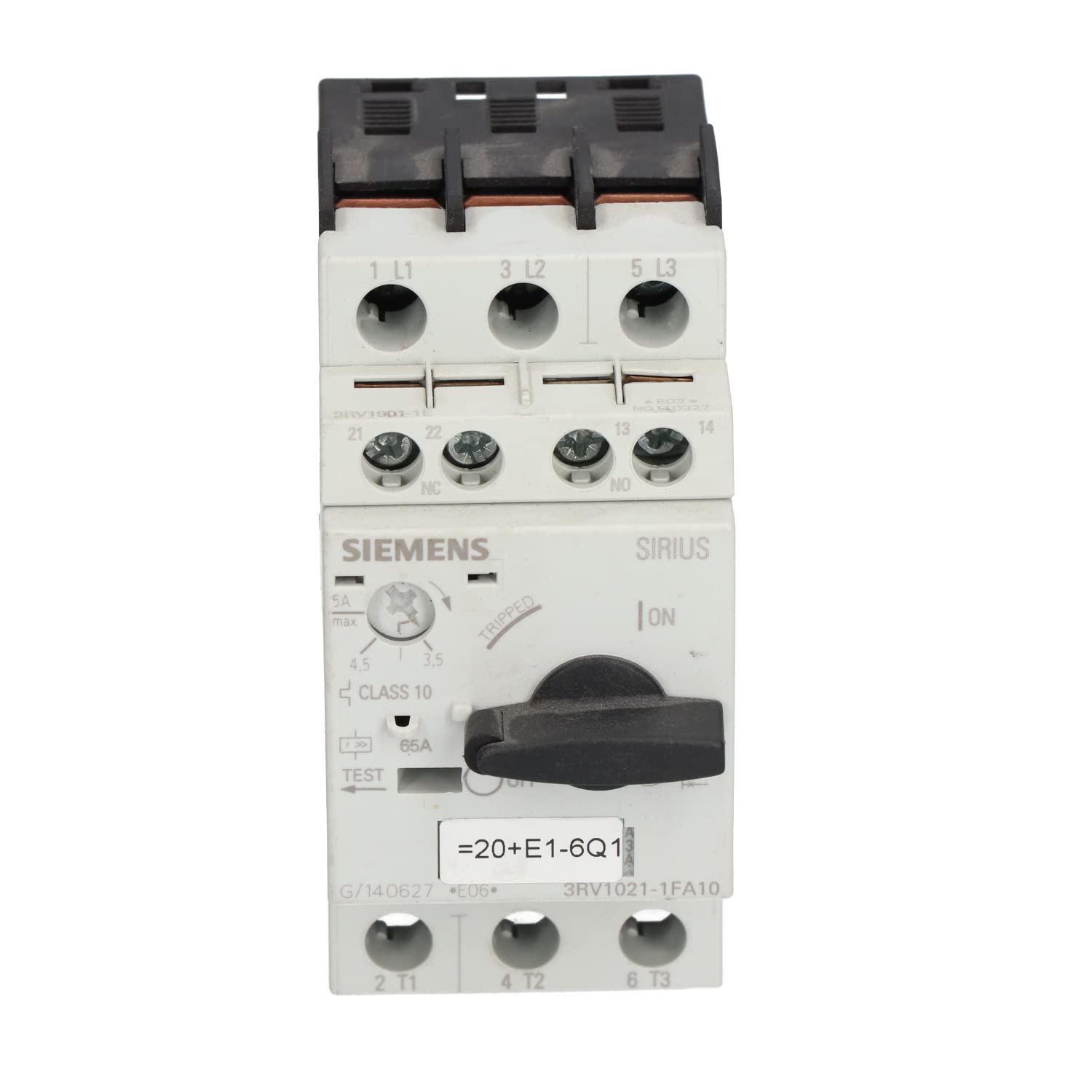

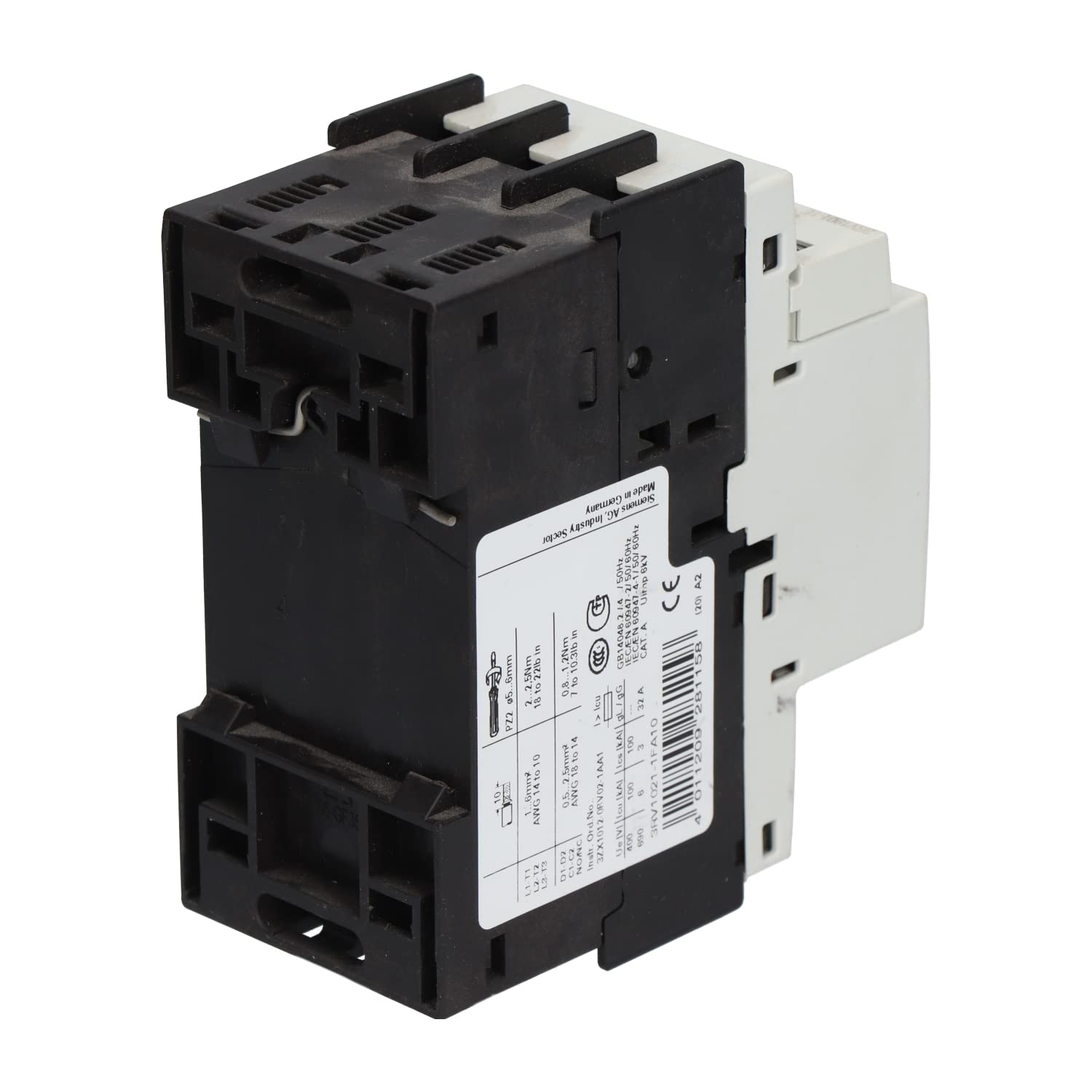

Siemens 3RV1021-1FA10 Motor Protector Starter 3.5-5amp

Product Description

The Siemens 3RV1021-1FA10 Motor Protector Starter operates between 3.5-5 amps. This Sirius, Class 10 motor starter protector/circuit breaker, size S0, offers a 3.5-5 FLA adjustment range and 100kA@400V. It features screw terminals and does not include an auxiliary switch. Ideal for precision motor protection.

• Coil Voltage: 600 V-AC
• Amperage: 3.5-5 A
• Manual operation

Product Highlights

The Siemens 3RV1021-1FA10 is a reliable motor protector starter with a 3.5-5 amp range, designed for precision motor protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1021-1FA10

Technical Specifications

• Coil Voltage: 600 V-AC
• Amperage: 3.5-5 A
• Number of Poles: 1
• Brand: Siemens
• Category: Din Rail Mount Circuit Breaker
• Part Number: 3RV1021-1FA10
• Manufacturers: Siemens
• Sub-Category: Motor Protector
• Family: Sirius
• Type: 3RV10
• Voltage: 690
• Group: Motor Starter Protector/Circuit Breaker
• Poles: 3
• Terminals: Screw
• Adjustment Range: 3.5-5
• Size: S0
• Auxiliary Contacts: Without
• Class: 10
• AIC Rating: 100kA@400V
