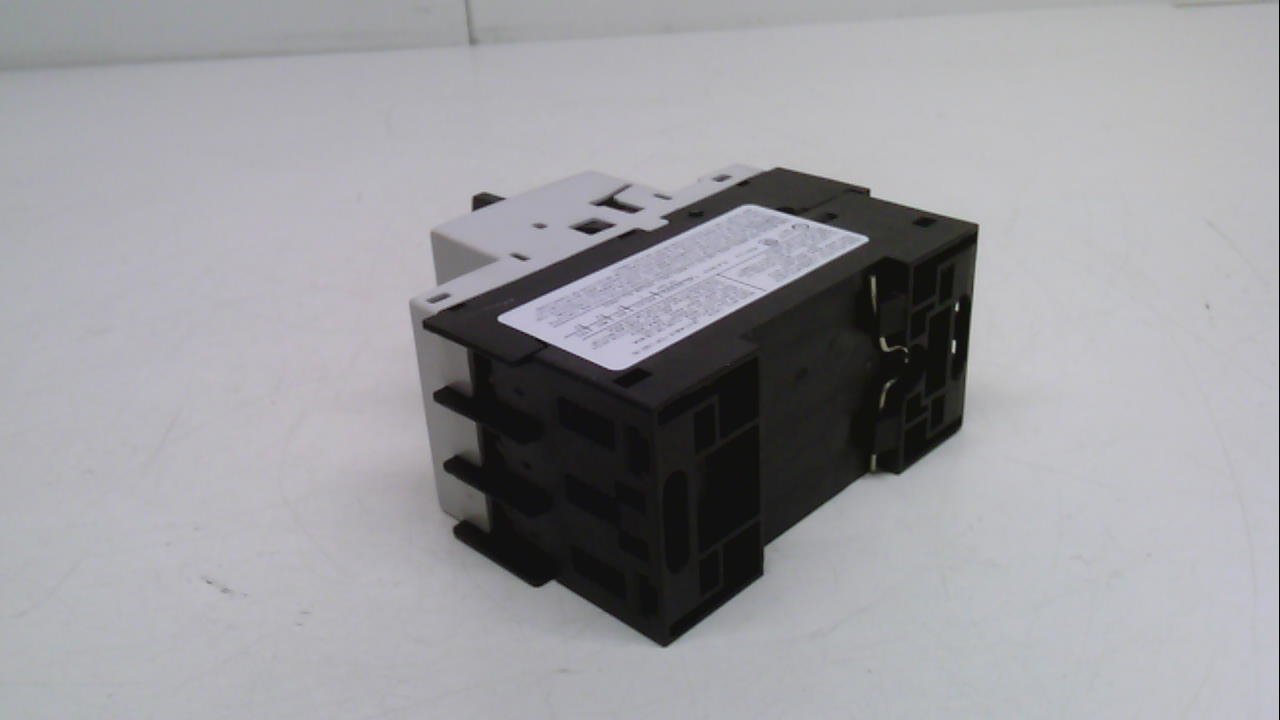

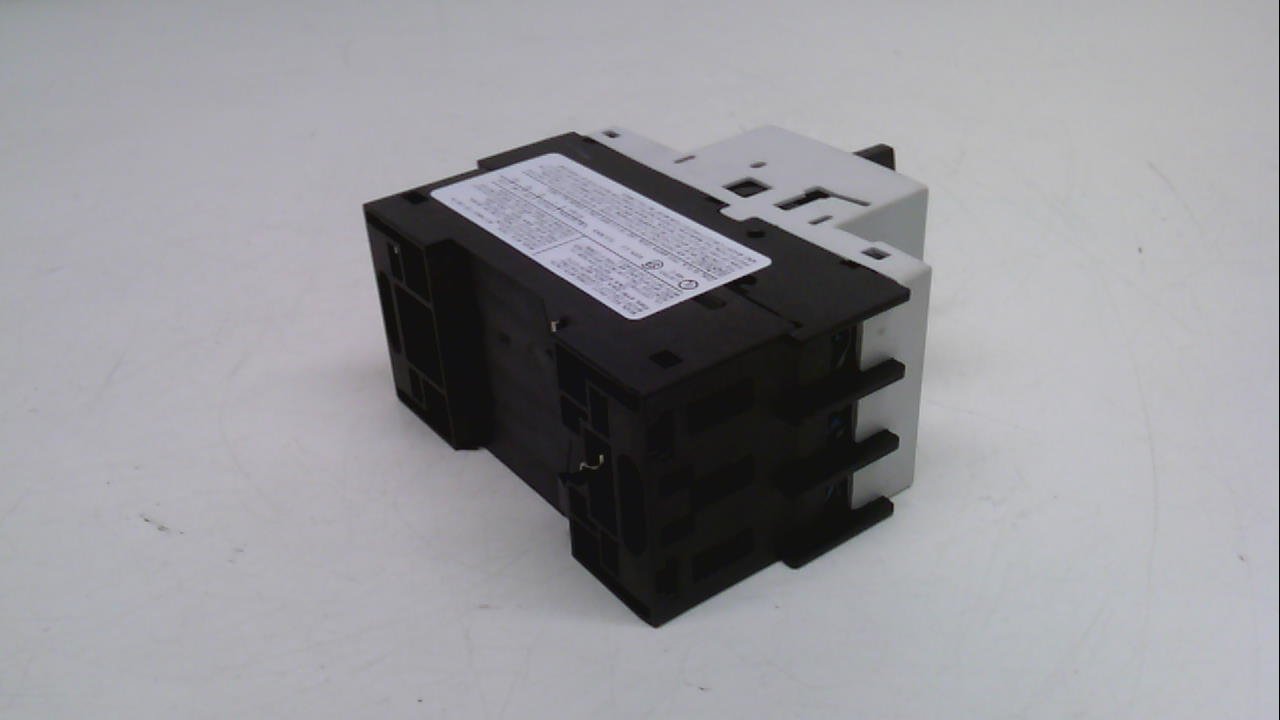

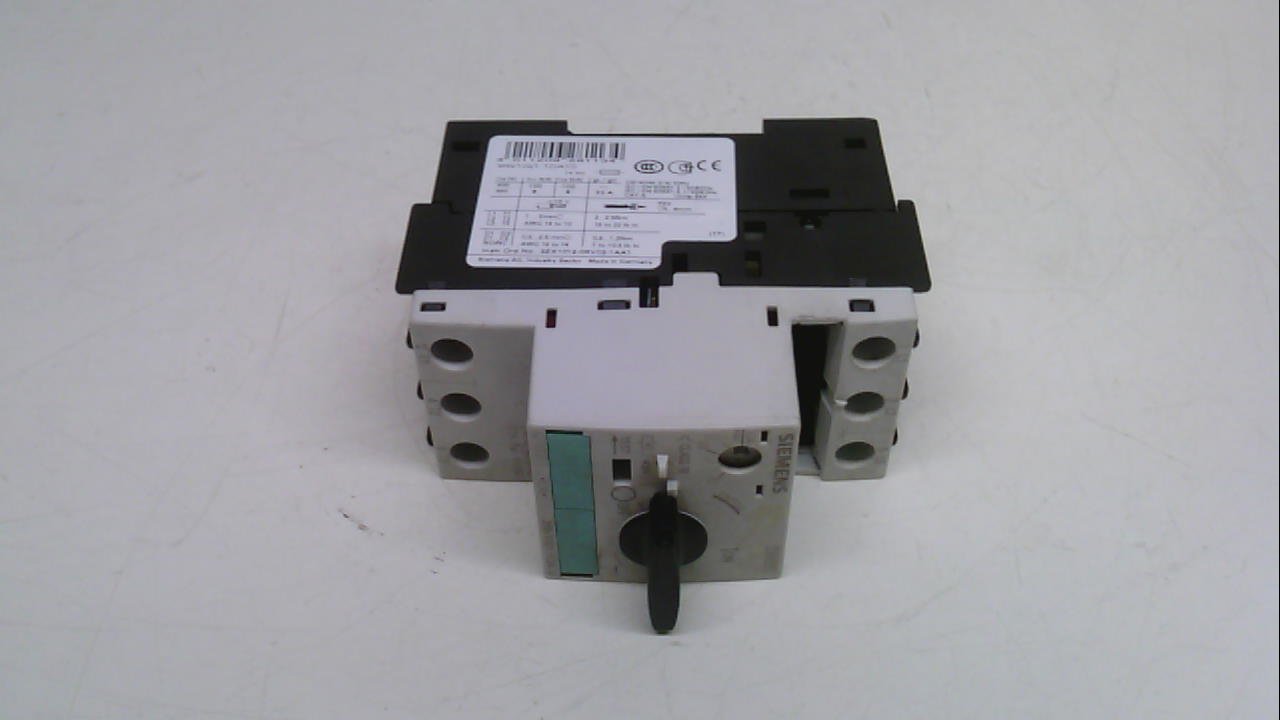

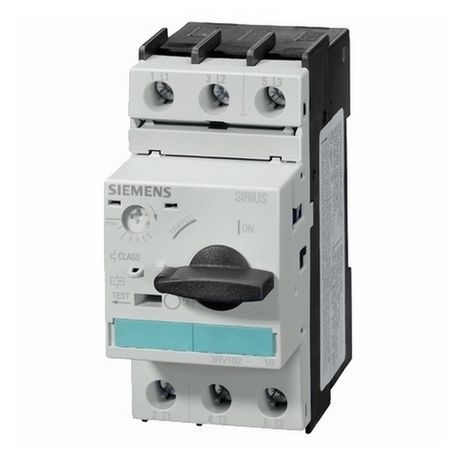

Siemens 3RV1021-1DA10 Circuit Breaker 3.2 A

Product Description

The SIEMENS 3RV1021-1DA10 circuit breaker is a Sirius 3RV2 circuit breaker with thermal overload relay class 10 and A-release 2.2-3.2 A. It features a short-circuit release of 42 A and screw terminals. This motor starter protector is optimized for load feeders and used for switching and protecting 3-phase induction motors.

• On/off rotary handle with lockout and visible trip indication
• Adjustment dial for setting to motor FLA
• Class 10 overload trip characteristics

Product Highlights

Compact, current limiting motor starter protector for switching and protecting 3-phase induction motors with a 3.2 A amperage rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1021-1DA10
• Country of Origin: DEU

Technical Specifications

• Brand: SIEMENS
• Manufacturer: SIEMENS
• Model / MPN: 3RV1021-1DA10
• Number of Items: 1.0
• Product Type: CIRCUIT_BREAKER
• Voltage Rating: 690 VAC/VDC
• Current Rating: 3.2 Amp
• Number of Poles: 3
• Starter Size: S0
• Terminal Type: Screw
• Trip Class: 10
• Mounting Type: DIN Rail
• Temperature Rating: -20 to 60 Deg C
• Enclosure Type: IP20
• Power Rating: 1.1 kW
• Frame: S0
• Series: 3RV1
• Amperage Rating: 3.2 A
• Interrupt Rating: 100 kA
• ActuatorType: Rotary Handle
• Frequency Rating: 50 to 60 Hz
• Phase: 3
• Trip Type: Thermal/Magnetic
• Standard & Approvals: UL Listed|CE Certified|CCC Certified|CSA Certified|IEC Certified
• Application: For motor protection and system protection
