Siemens 3RV1021-1BA10 msp, type e 2 amp replacement 3RV10211BA10

Product Description

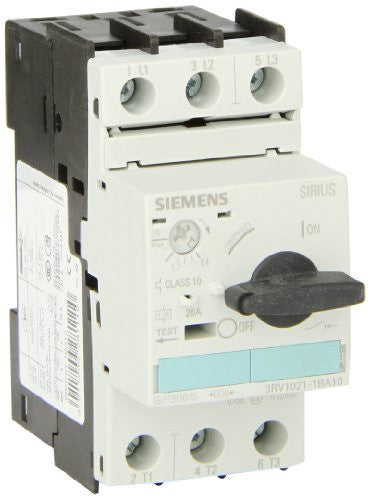

The SIEMENS 3RV1021-1BA10 is a motor starter protector of the thermal magnetic type. This 690 Volt AC circuit breaker has a current rating of 2 Amp and features three poles. It is designed for switching and protecting induction motors and other loads. The device is suitable for use in motor feeders for special voltages of 440V, 480V, 550V and 690V.

• Voltage Rating 690 Volt AC
• Trip Setting 1.4 to 2 Amp
• Mounting Type 35 Millimeter Standard Rail, Screw/Snap-On

Product Highlights

Motor starter protector with thermal magnetic type, voltage rating 690 Volt AC, and current rating of 2 Amp.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1021-1BA10
• Country of Origin: DEU

Technical Specifications

• Current Rating: 1.4 to 2 A
• Number of Poles: 3
• Trip Setting: 1.4 to 2 Amp
• Starter Size: S0
• Terminal Type: Screw
• Wire Type: (2) 1 to 2.5 Square Millimeter, (2) 2.5 to 6 Square Millimeter (Solid/Stranded)
• Size: 45 Millimeter Width x 96 Millimeter Depth x 97 Millimeter Height
• Approval: UL 508, CSA C22.2, CE, CCC, EAC
• Trip Class: 10
• Mounting Type: 35 Millimeter Standard Rail, Screw/Snap-On
• Temperature Rating: -20 to 60 Deg C
• Manufacturer: SIEMENS
• Manufacturer Part Number: 3RV10211BA10
• Primary Type: Circuit Breaker
• Series: 3RV1 Series
