Siemens 3RV1011-1JA10 Motor Starter Protector, 7-10A, Thermal/Magnetic Trip, 3 Poles

Product Description

The Siemens 3RV1011-1JA10 Motor Starter Protector is a compact and powerful device designed to protect motors and other loads. With its ability to handle currents up to 10 amps and a high short-circuit release of 130A, it is an essential component in industrial electrical systems.

• High short-circuit release of 130A and a current range of 7-10 amps for effective motor protection.
• Thermal magnetic trip technology ensures safe operation under overload conditions.
• Equipped with a 3-pole design suitable for various industrial applications.

Product Highlights

This Siemens Motor Starter Protector is notable for its robust frame size and high breaking capacity at voltages up to 690 VAC. It is designed to be used with three-phase induction motors and can sustain significant electrical loads.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RV1011-1JA10

Technical Specifications

• Frame Size: 3RV101
• Adjustment Range: 7-10 FLA
• Intrerrupt Rating: 100 kAIC
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Country of Origin: Germany

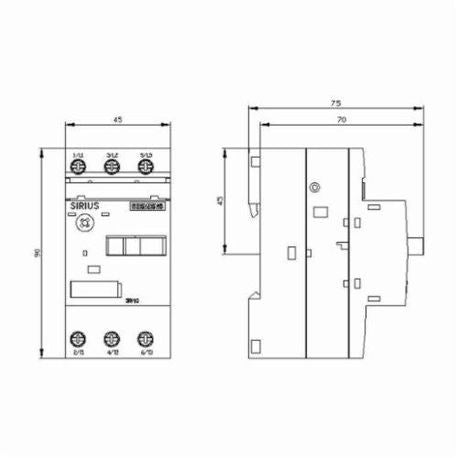

• Dimensions: 97 mm x 45 mm x 81 mm
• Weight: 0.615 lb
