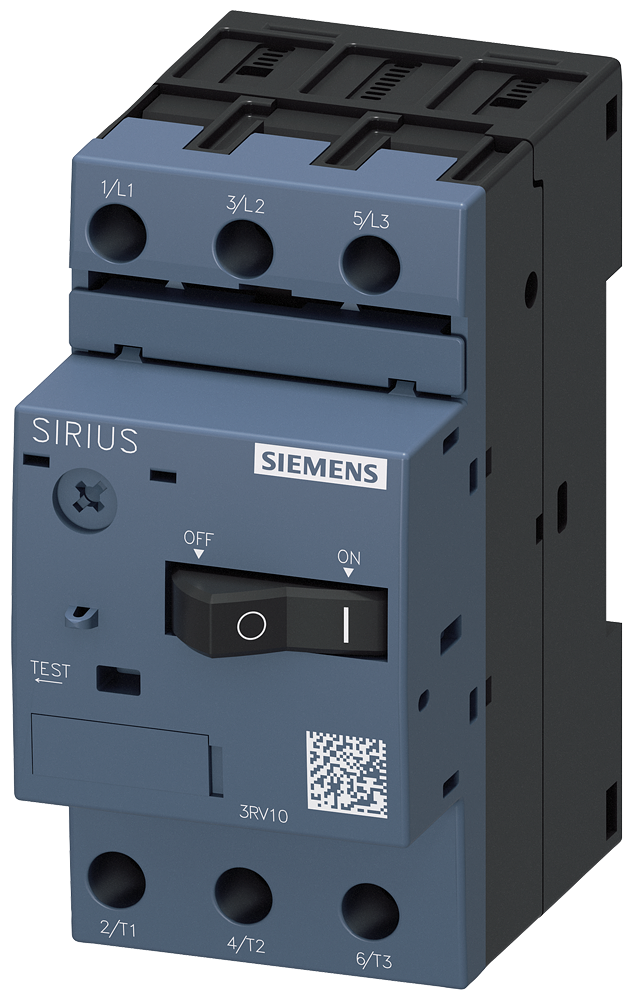

Siemens 3RV1011-0DA10 Type 3RV10 Motor Protection Circuit Breaker, 690 VAC, 0.32 A, 3 Poles REPLACED BY 3RV20110DA10

Product Description

The SIEMENS 3RV1011-0DA10 Type 3RV10 motor protection circuit breaker operates at 690 VAC with a 0.32 A amperage rating and a 100 kA interrupt rating. It features a thermal magnetic trip and is designed for side-by-side mounting up to 60 degrees Celsius. This 3-pole circuit breaker provides clear indication of CLOSED/OPEN/TRIPPED positions.

• 120 kA short circuit breaking capacity Icu at 400 VAC
• TU 4 trip unit (release)
• Suitable for screw connection

Product Highlights

Motor protection circuit breaker with thermal magnetic trip, suitable for DIN rail or snap-on mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1011-0DA10
• Country of Origin: DE

Technical Specifications

• Alternate Catalog Number: 3RV1011-0DA10
• Catalog Number: 3RV1011-0DA10
• Connection Type: Screw
• Country of Origin: DE
• Enclosure Type: IP20
• Frame: S00
• Frequency Rating: 50 to 60 Hz
• Mounting Type: DIN Rail/Snap-On
• Number Of Poles: 3
• Phase: 3
• Power Rating: 120 W
• Replaced Catalog Number: 3RV20110DA10
• Standards: CE CertifiedCSA CertifiedCCC MarkedEAC ApprovedUL Listed
• Temperature Rating: -20 to 60 °C
• Trip Range: 0.22 to 0.32/4.2
• Type: Type 3RV10
• UNSPSC: 39121601
• Amperage Rating: 0.32 A
• Interrupt Rating: 100 kA
• Trip Type: Thermal Magnetic
• Voltage Rating: 690 VAC
• Application: For motor protection
• Wire Size: 0.5 to 4
